Repair Procedures: Inspection

It will be able to diagnose defects of IMS with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
Select model and "IPM - Power seat module".
Select "Input/output monitoring", if you will check current data of body network system. It provides input/output status of each module.

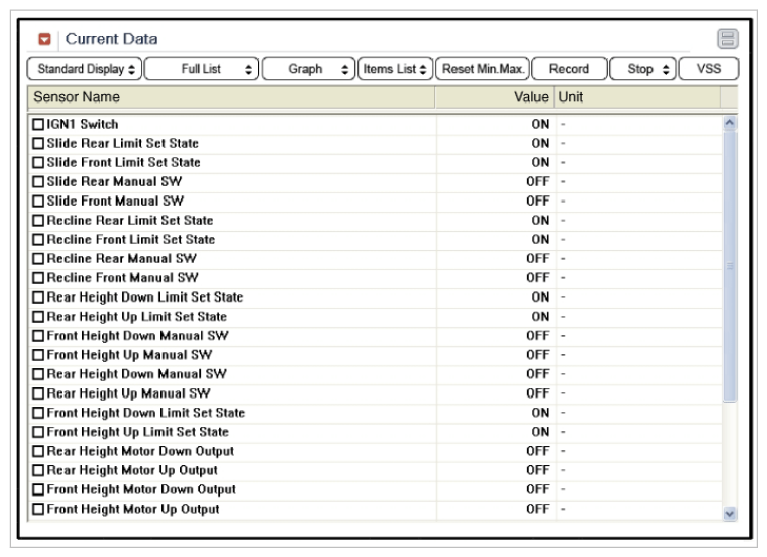

Fig 1: Display - IMS Power Seat Control Sensor Current Data
Courtesy of HYUNDAI MOTOR AMERICA
If you will check each module data operation forcefully, select "Actuation test".

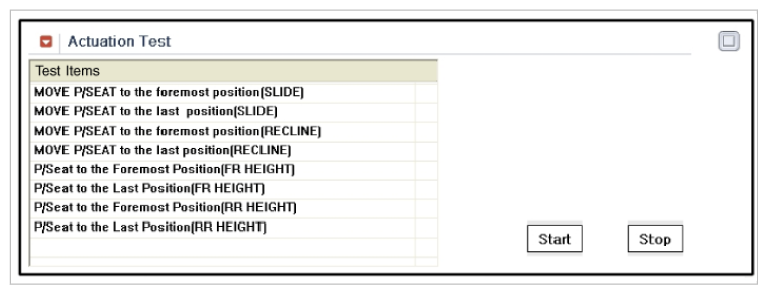

Fig 2: Display - IMS Power Seat Control Sensor Actuation Test
Courtesy of HYUNDAI MOTOR AMERICA
To check the DTC of the each module, select "DIAGNOSTIC TROUBLE CODES"

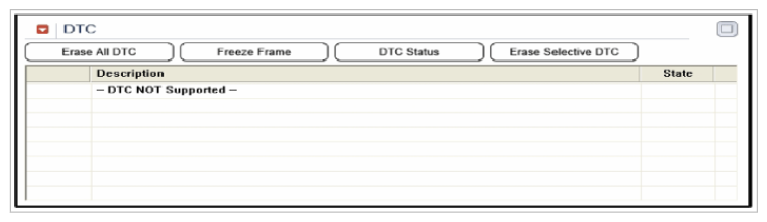

Fig 3: Display - DTC Menu Screen
Courtesy of HYUNDAI MOTOR AMERICA
You can turn ON/OFF of Power seat module option with the "User option"

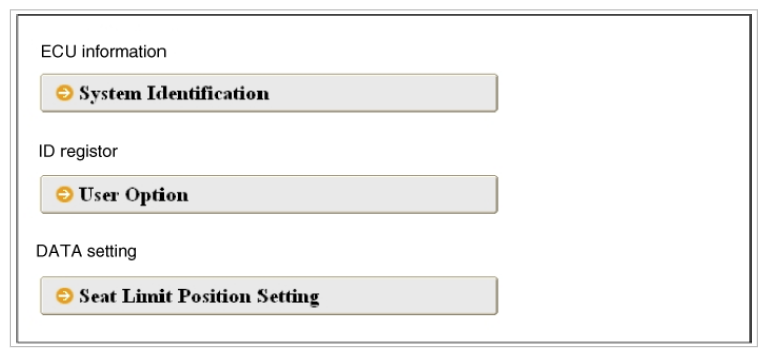

Fig 4: Display - Power Seat Module User Option Screen
Courtesy of HYUNDAI MOTOR AMERICA
Select the "Data setting" to set the seat position setting when replacing the IMS unit or seat module.

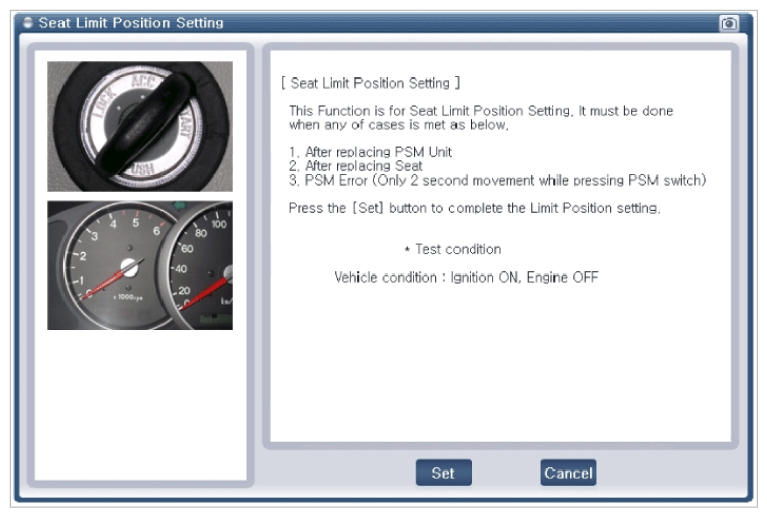

Fig 5: Display - Seat Limit Position Setting Screen
Courtesy of HYUNDAI MOTOR AMERICA
Click the "Set".

Fig 6: Display - Steering Limit Position Setting Screen
Courtesy of HYUNDAI MOTOR AMERICA
Click the "OK" to complete the set up procedure.

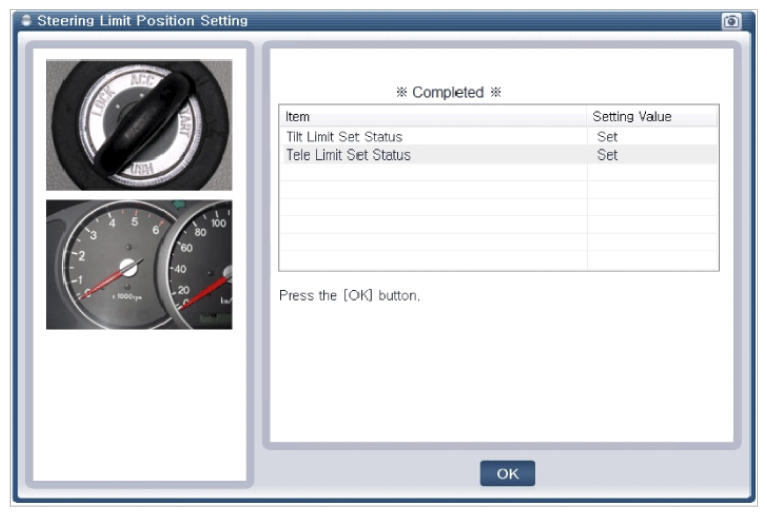

Fig 7: Display - Steering Limit Position Setting Completion Message
Courtesy of HYUNDAI MOTOR AMERICA
