Repair Procedures: Removal

Remove the bumper.
(Refer to "FRONT BUMPER COVER ")

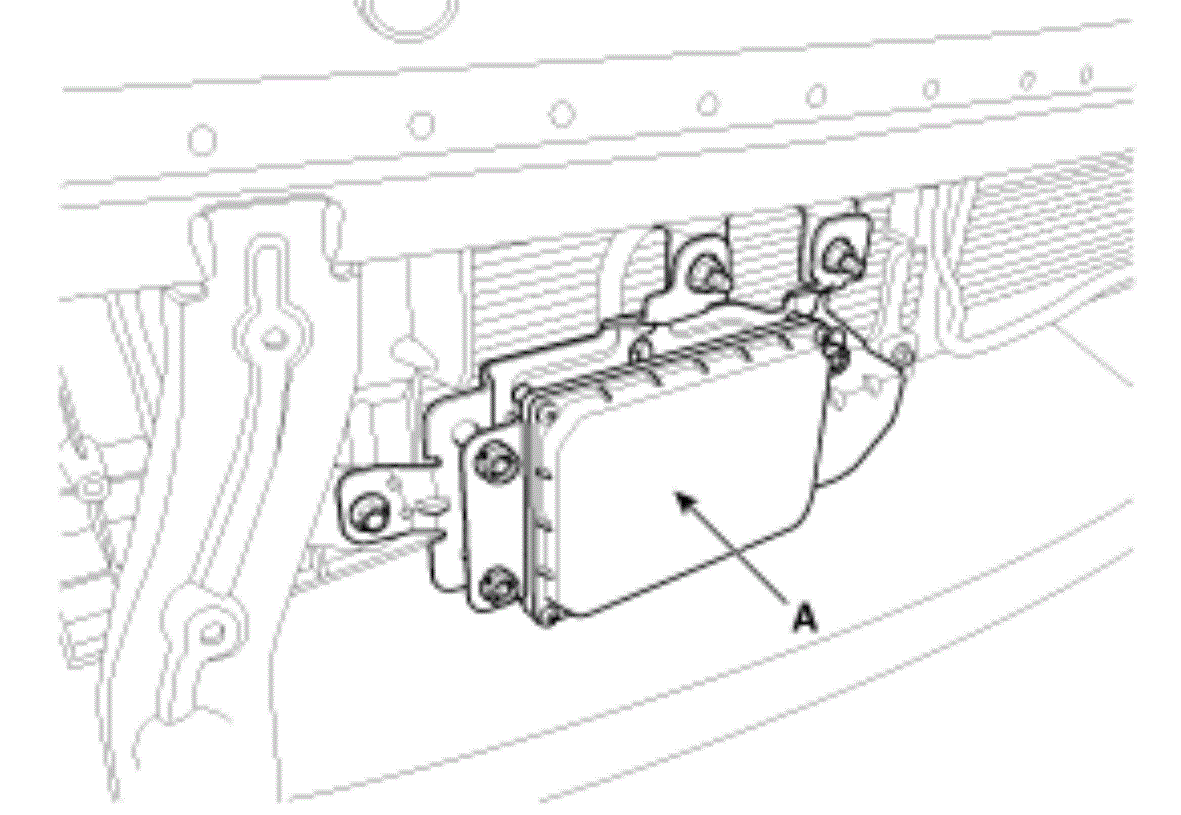

Loosen the bolts and nuts and then remove the smart cruise control unit assembly (A) from the vehicle.

Fig 1: Identifying Smart Cruise Control Unit Assembly
Courtesy of HYUNDAI MOTOR AMERICA

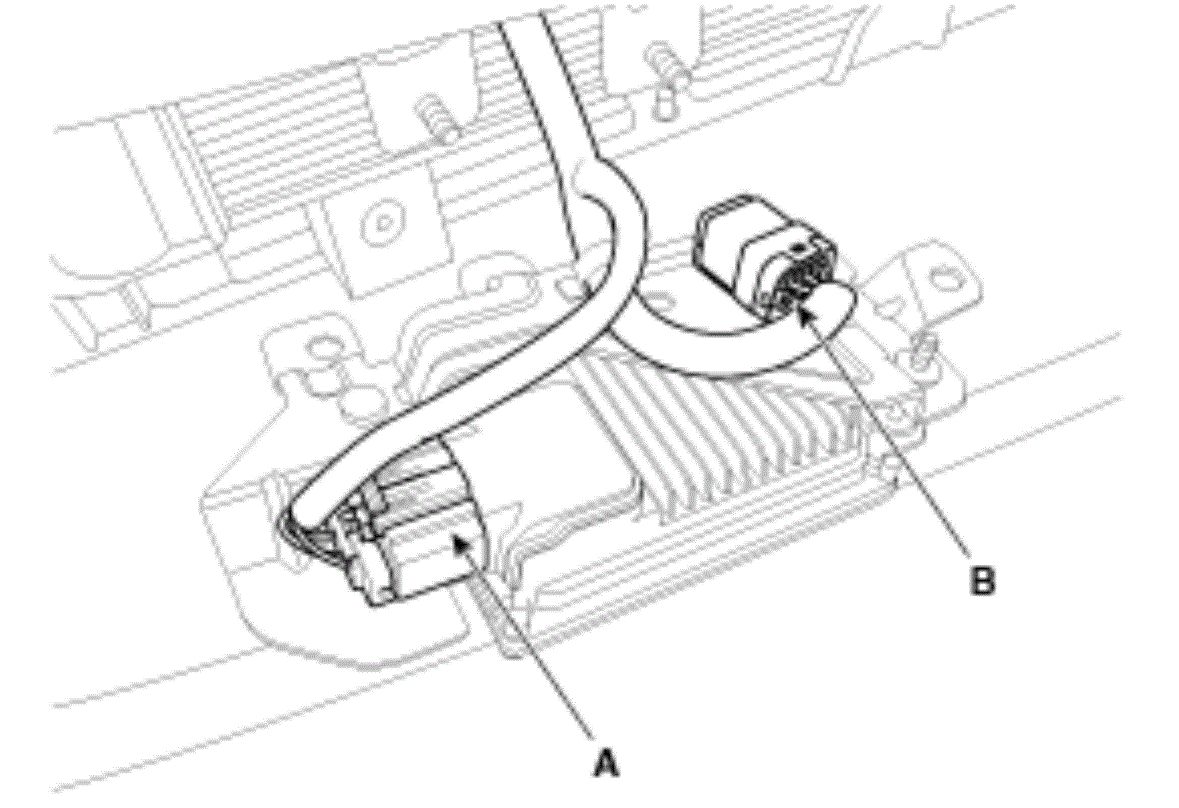

Disconnect the FEM joint connector (B) band cable and smart cruise control unit connector (A).

Fig 2: Identifying FEM Joint Connector And Smart Cruise Control Unit Connector
Courtesy of HYUNDAI MOTOR AMERICA
