Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the overhead console lamp assembly with removal.
Remove the overhead console lamp after disconnecting the panorama roof switch connector and lamp connector (A).

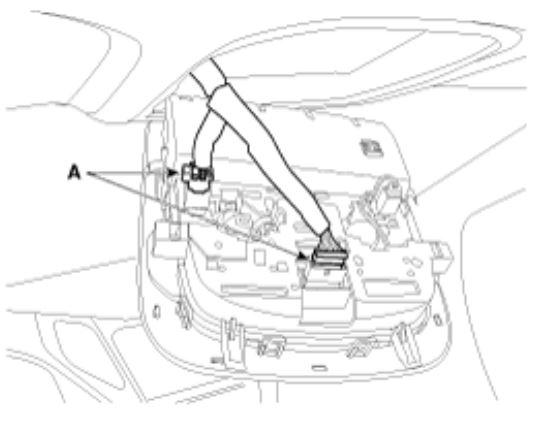

Fig 1: Identifying Panoramaroof Switch And Lamp Connectors
Courtesy of HYUNDAI MOTOR AMERICA

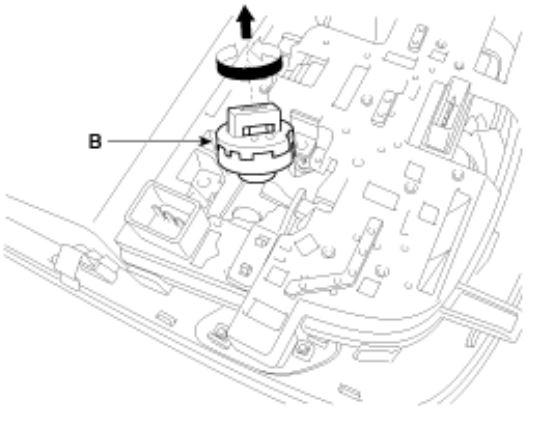

Fig 2: Removing Overhead Console Lamp Bulb
Courtesy of HYUNDAI MOTOR AMERICA
If necessary to replace the bulb, replace the bulb (B).
