Repair and Diagnosis
›
Accessories & Equipment
›
Infotainment
›
Audio/Video/Navigation (AVN) System
›
AVN Remote Controller
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

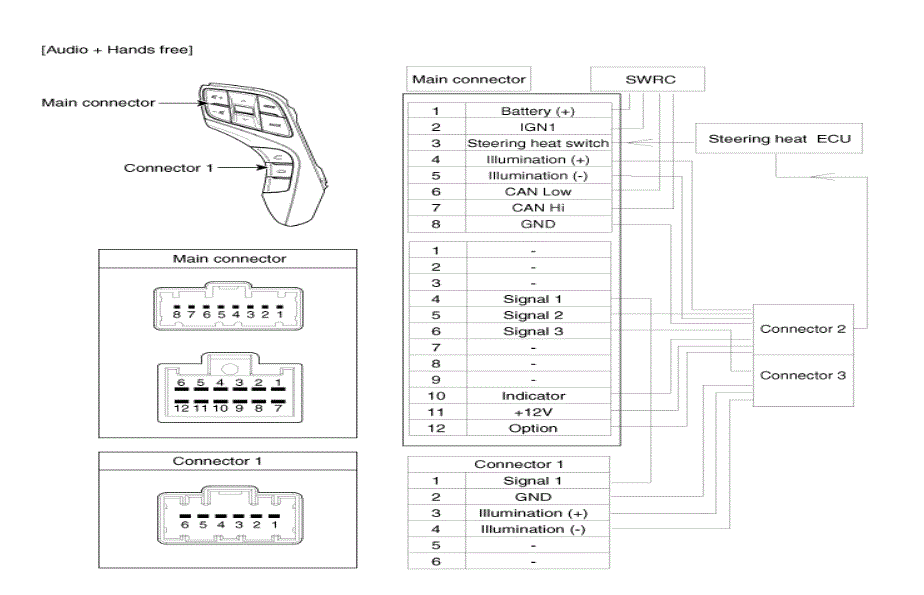

Fig 1: AVN Remote Controller Circuit Diagram (Audio And Hands Free)
Courtesy of HYUNDAI MOTOR AMERICA

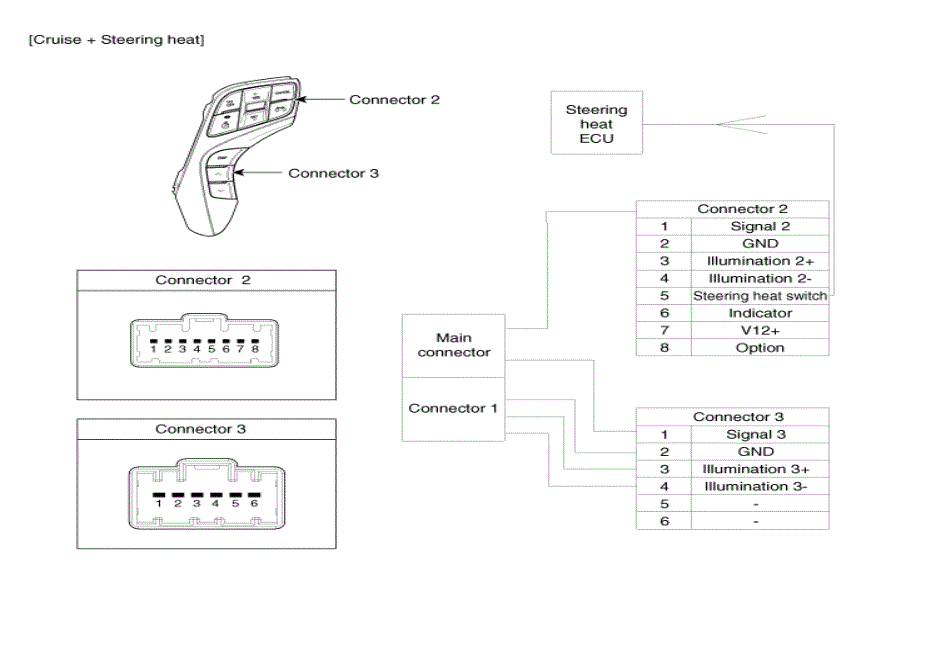

Fig 2: AVN Remote Controller Circuit Diagram (Cruise And Steering Wheel)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
