Repair Procedures: Replacement

CAUTION:

Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Put on gloves to protect your hands.

Remove the front seat assembly.
(Refer to "FRONT SEAT ASSEMBLY ")
Remove the rear seat assembly.
(Refer to "REAR SEAT ASSEMBLY ")
Remove the console rear complete & console front complete assembly.
(Refer to "FLOOR CONSOLE ASSEMBLY ")
Remove the front pillar trim.
(Refer to "FRONT PILLAR TRIM ")
Remove the center pillar upper trim.
(Refer to "CENTER PILLAR TRIM ")
Remove the rear pillar trim.
(Refer to "REAR PILLAR TRIM ")
Remove the sunvisor and retainer.
(Refer to Roof Trim - "SUNVISOR ")
Remove the assist handle.
(Refer to Roof Trim - "ASSIST HANDLE ")
Remove the overhead console lamp.
(Refer to "OVERHEAD CONSOLE LAMP ")
Remove the room lamp.
(Refer to "ROOM LAMP ")
Remove the ECM mirror cover (A).
Disconnect the ECM mirror connector (B).

Fig 1: Identifying ECM Mirror Cover And Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the rain sensor cover (A).
Disconnect the rain sensor connector (B).

Fig 2: Identifying Rain Sensor Cover And Connector
Courtesy of HYUNDAI MOTOR AMERICA

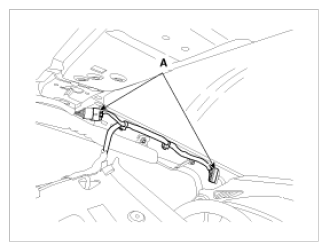

Disconnect the roof trim main connectors (A).

Fig 3: Identifying Roof Trim Main Connectors
Courtesy of HYUNDAI MOTOR AMERICA

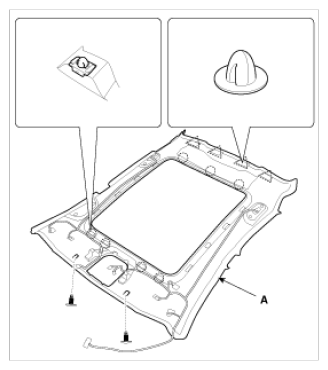

Detach the clips, then remove the roof trim assembly (A).

Fig 4: Identifying Roof Trim Assembly With Clips
Courtesy of HYUNDAI MOTOR AMERICA
Remove the vanity lamp.
(Refer to "ROOM LAMP ")
Remove the hands free mic.
(Refer to "HANDS FREE MIC ")
Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
- Replace any damaged clips.
