Repair Procedures: Installation

Installation is the reverse of removal.
Use a SST (09581-11000) when installing the brake caliper assembly.

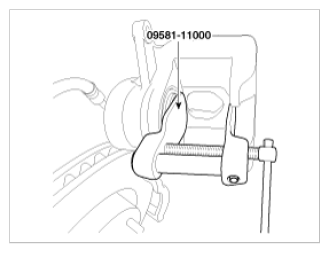

Fig 1: Installing Brake Caliper Assembly Using Special Tool
Courtesy of HYUNDAI MOTOR AMERICA
After installation, bleed the brake system.
(Refer to BRAKE SYSTEM BLEEDING )
