Components and Components Location: Components

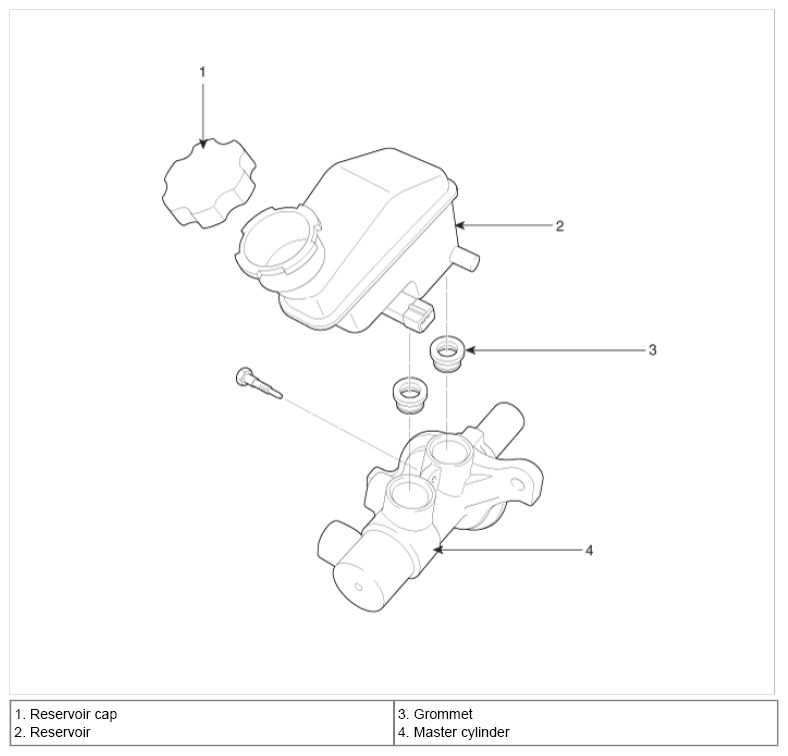

Fig 1: Master Cylinder Components Location
G08810357Courtesy of HYUNDAI MOTOR AMERICA
