ABS Control Module Connector End View (E02)

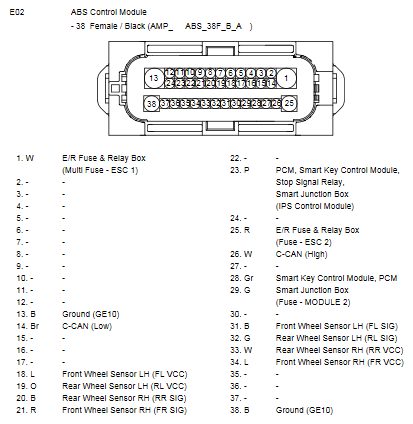

Fig 1: ABS Control Module Connector End View (E02)
G10775815Courtesy of HYUNDAI MOTOR AMERICA
