Smart Junction Box Connector End View (I/P-A)

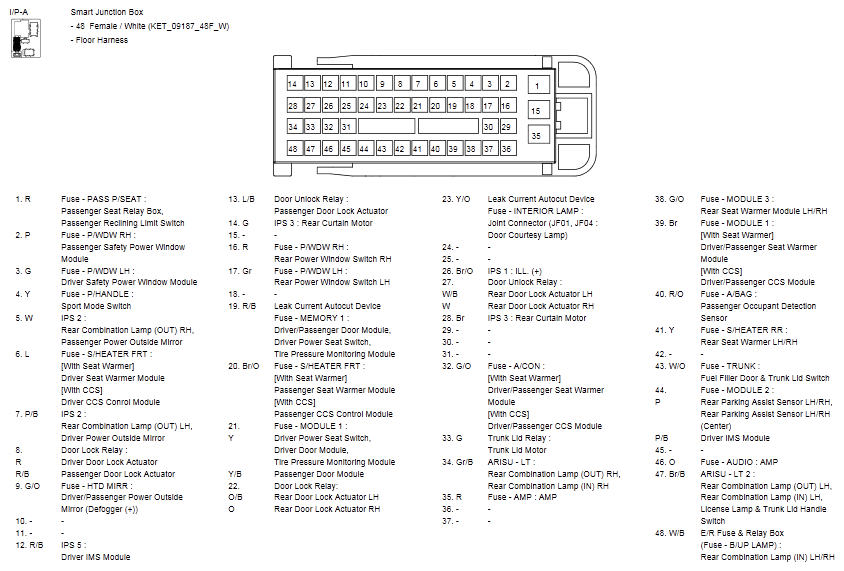

Fig 1: Smart Junction Box Connector End View (I/P-A)
G10776059Courtesy of HYUNDAI MOTOR AMERICA
