Smart Junction Box Connector End View (I/P-C)

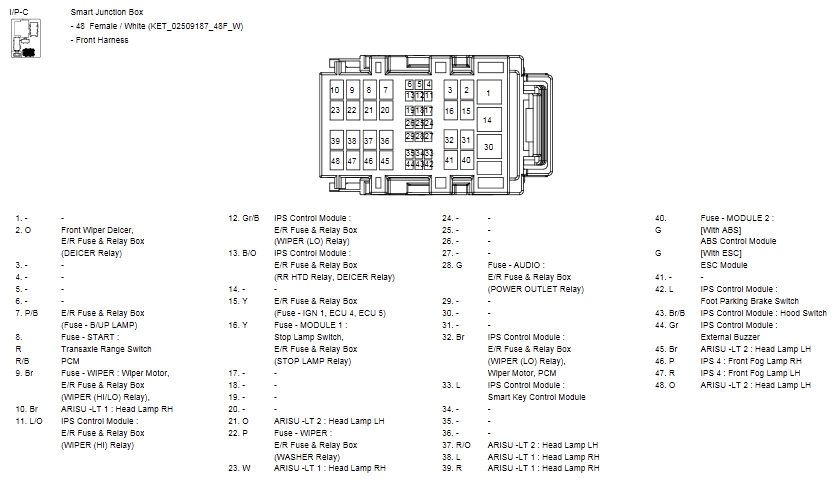

Fig 1: Smart Junction Box Connector End View (I/P-C)
G10776061Courtesy of HYUNDAI MOTOR AMERICA
