Smart Junction Box Connector End View (I/P-D)

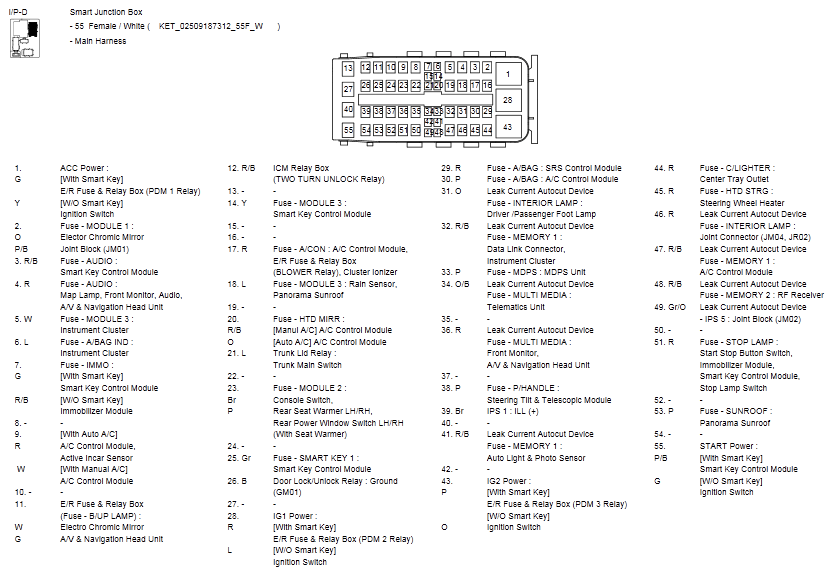

Fig 1: Smart Junction Box Connector End View (I/P-D)
G10776062Courtesy of HYUNDAI MOTOR AMERICA
