Smart Junction Box Connector End View (I/P-E)

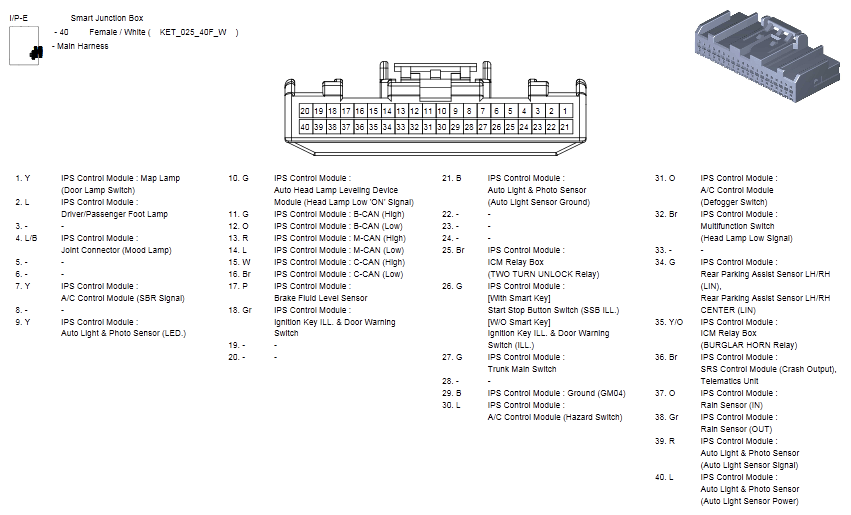

Fig 1: Smart Junction Box Connector End View (I/P-E)
G10776063Courtesy of HYUNDAI MOTOR AMERICA
