Smart Junction Box Connector End View (I/P-F)

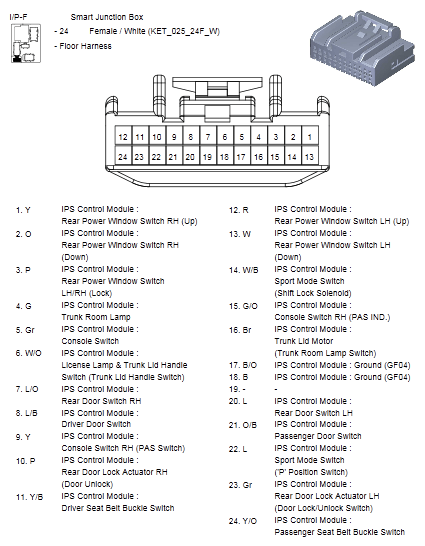

Fig 1: Smart Junction Box Connector End View (I/P-F)
G10776064Courtesy of HYUNDAI MOTOR AMERICA
