Upper Oil Pan

Install the upper oil pan.
1. Using a gasket scraper, remove all the old gasket material from the gasket surfaces.
2. Before assembling the oil pan, the liquid sealant TB1217H should be applied on upper oil pan. The part must be assembled within 5 minutes after the sealant was applied.
  Bead width : 2.5mm (0.1in.)

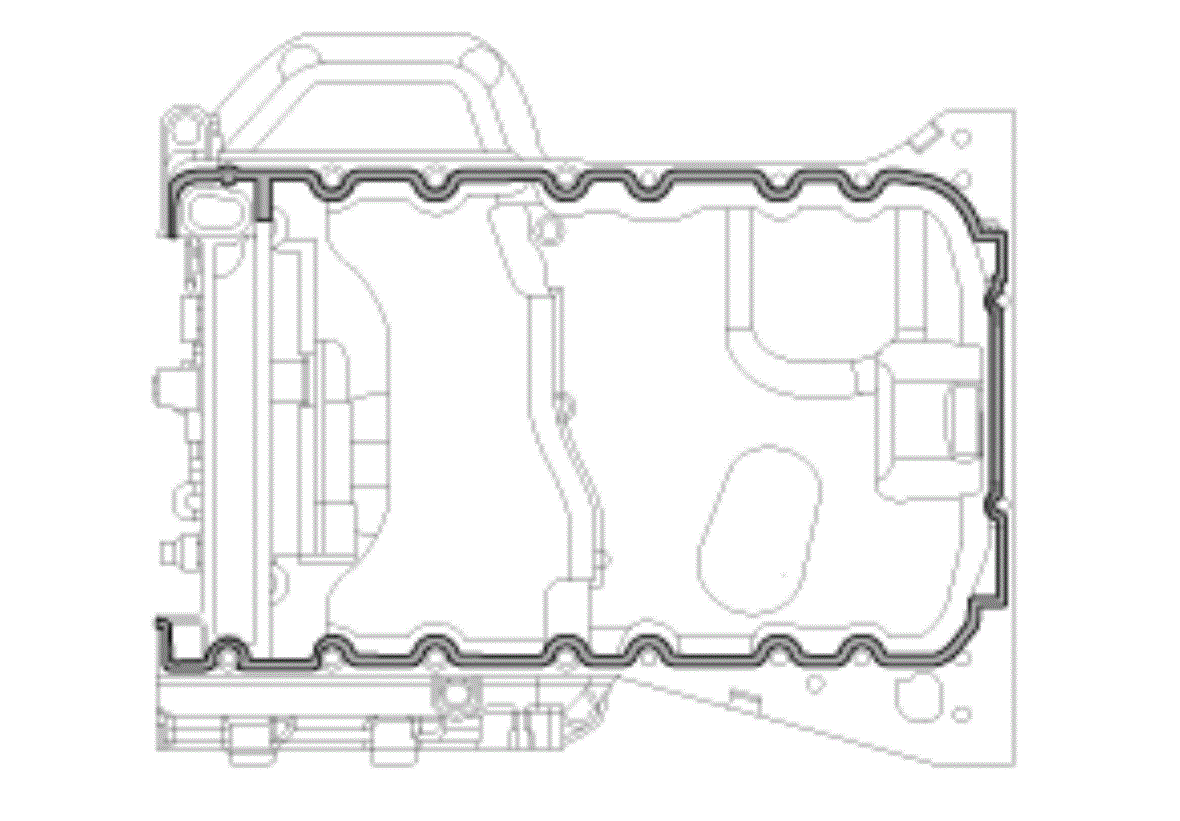

  Fig 1: Identifying Gasket Applying Area On Upper Oil Pan
  Courtesy of HYUNDAI MOTOR AMERICA
  NOTE:
  - Clean the sealing face before assembling two parts.
  - Remove harmful foreign materials on the sealing face before applying sealant
  - When applying sealant gasket, sealant must not protrude into the inside of oil pan.
  - To prevent leakage of oil, apply sealant gasket to the inner threads of the bolt holes.
3. Install the upper oil pan.
  Uniformly tighten the bolts in several passes.

  Tightening torque 9.8 ~ 11.8Nm (1.0 ~ 1.2kgf.m, 7.2 ~ 8.7lb-ft)

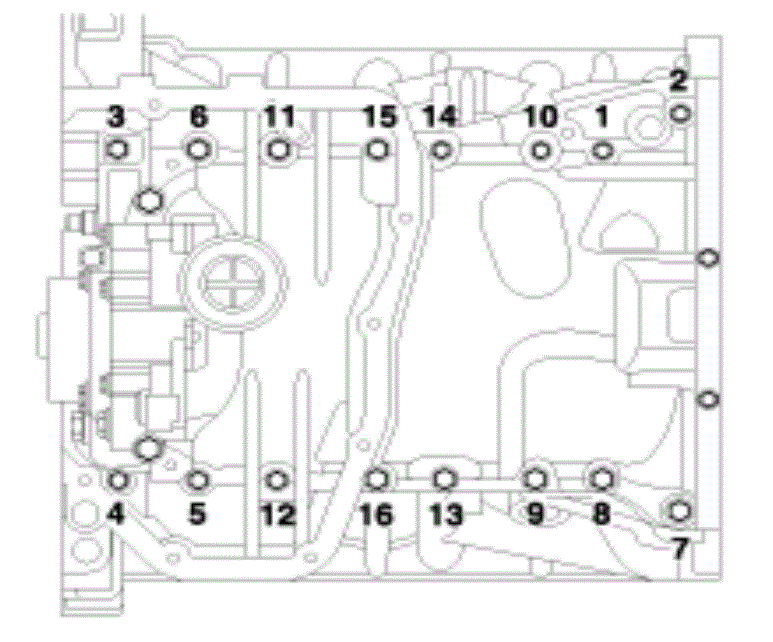

  Fig 2: Identifying Upper Oil Pan Mounting Bolts Tightening Sequence
  Courtesy of HYUNDAI MOTOR AMERICA
Install the other parts reverse order of removal.
