Repair Procedures: Removal

Remove the timing chain.
(Refer to "TIMING CHAIN ")
Remove the CVVT assembly.
1. A: LH exhaust CVVT
2. B: LH intake CVVT

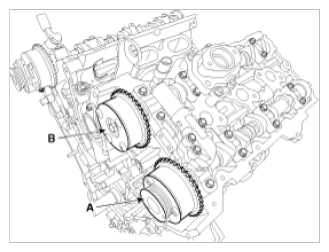

  Fig 1: Identifying LH Intake And Exhaust CVVT
  Courtesy of HYUNDAI MOTOR AMERICA
3. C: RH intake CVVT
4. D: RH exhaust CVVT

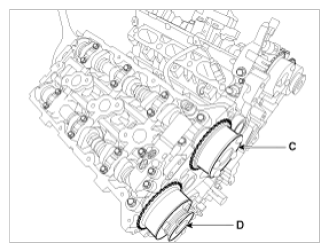

  Fig 2: Identifying RH Intake And Exhaust CVVT
  Courtesy of HYUNDAI MOTOR AMERICA

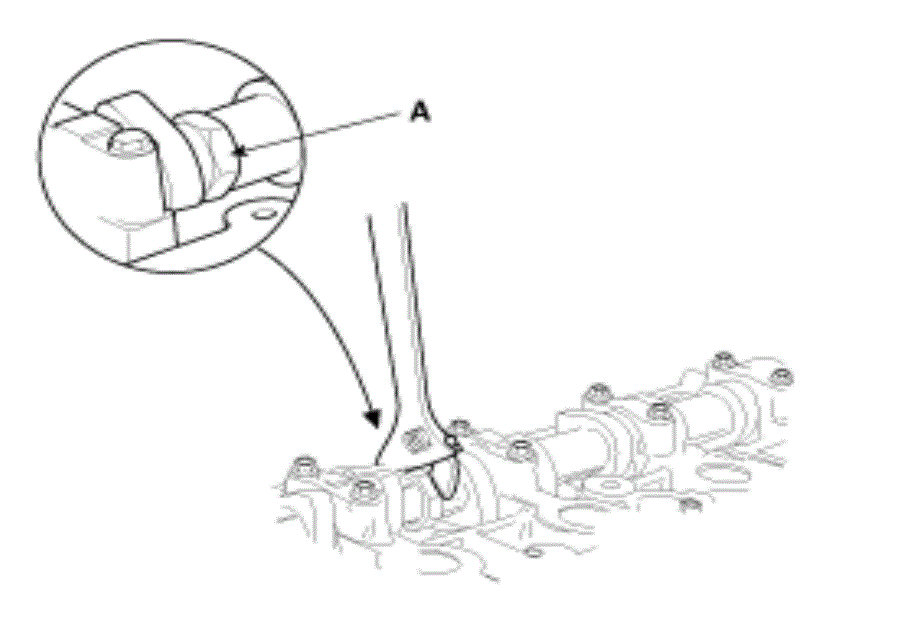

  NOTE: When removing the CVVT assembly bolt, prevent the camshaft from rotating by using a wrench at position A.

  Fig 3: Preventing Camshaft Rotation Using Wrench
  Courtesy of HYUNDAI MOTOR AMERICA
