Components and Components Location: Components

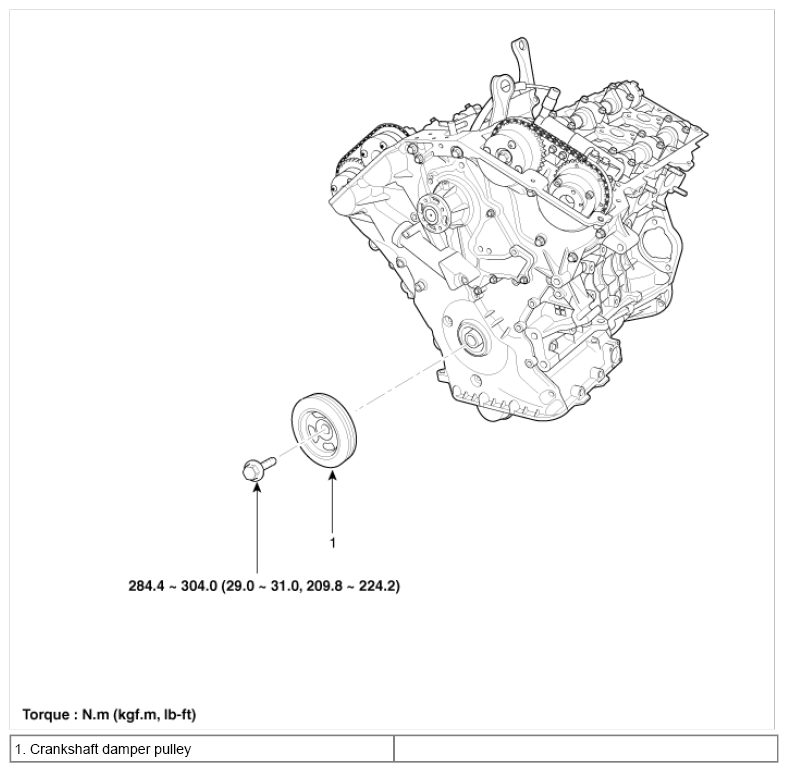

Fig 1: Crankshaft Damper Pulley With Torque Specifications
G08809130Courtesy of HYUNDAI MOTOR AMERICA
