Repair Procedures: Removal

  1. Remove the crankshaft damper pulley.

    (Refer to "CRANKSHAFT DAMPER PULLEY ")

  2. Remove the front oil seal (A).

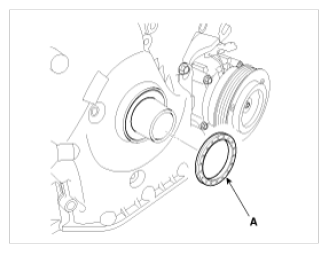

    Fig 1: Identifying Front Oil Seal
    G08809137Courtesy of HYUNDAI MOTOR AMERICA
