Engine Control System Diagnosis (1 Of 3)
›
DTC P0123: Throttle Position Sensor 1 Signal Circuit High Input
›
General Information
›
Signal Waveform & Data
Signal Waveform & Data

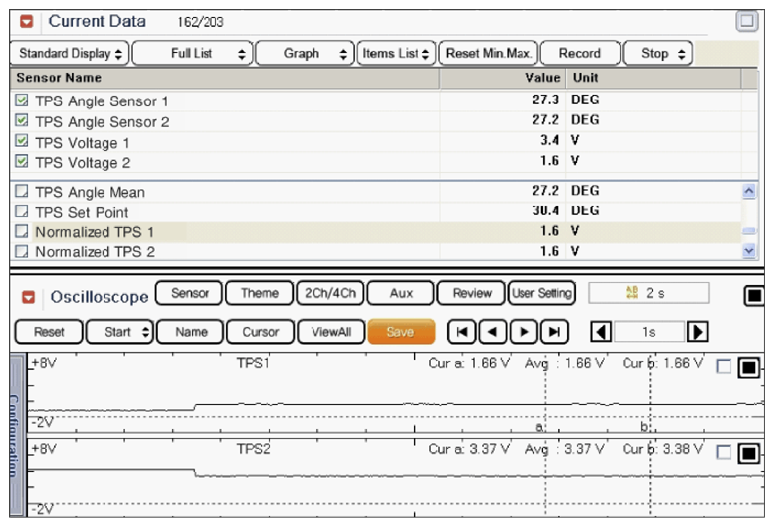

Fig 1: TPS1 & TPS2 Normal Data And Waveform (With Depressing Accelerator Pedal)
Courtesy of HYUNDAI MOTOR AMERICA

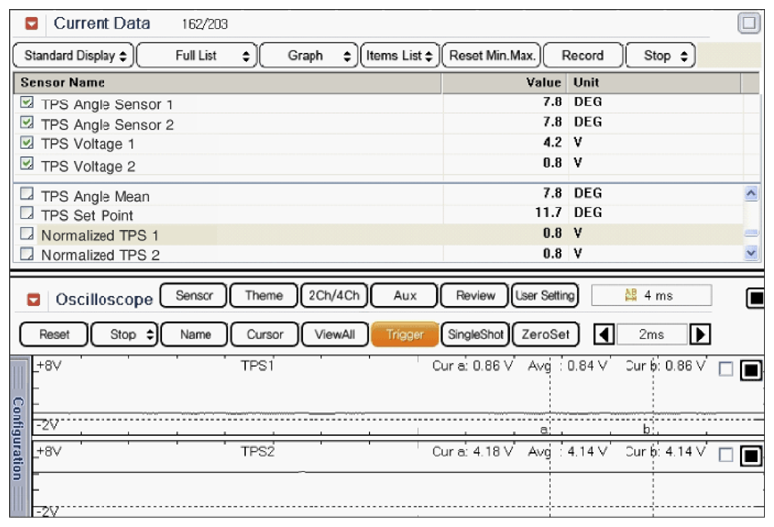

Fig 2: TPS1 & TPS2 Normal Data And Waveform (With Pressing Accelerator Pedal)
Courtesy of HYUNDAI MOTOR AMERICA

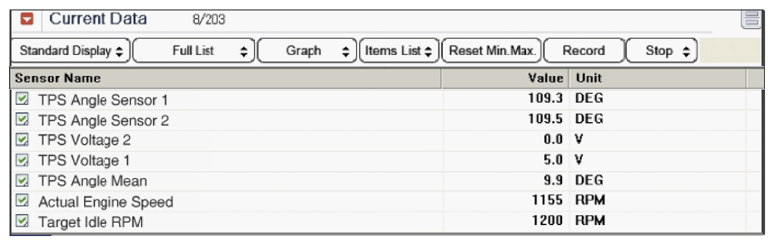

Fig 3: TPS1 & TPS2 Abnormal Data (With Connector Disconnected Condition)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
