Signal Waveform & Data

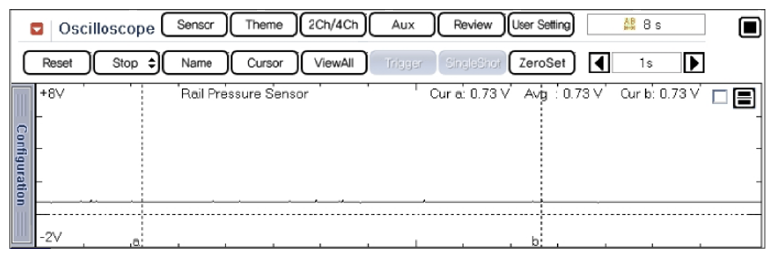

Fig 1: Rail Pressure Sensor Normal Waveform (At Idle)
G08817183Courtesy of HYUNDAI MOTOR AMERICA

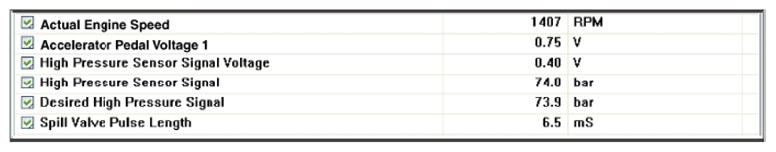

Fig 2: Rail Pressure Sensor Current Data
G08817184Courtesy of HYUNDAI MOTOR AMERICA

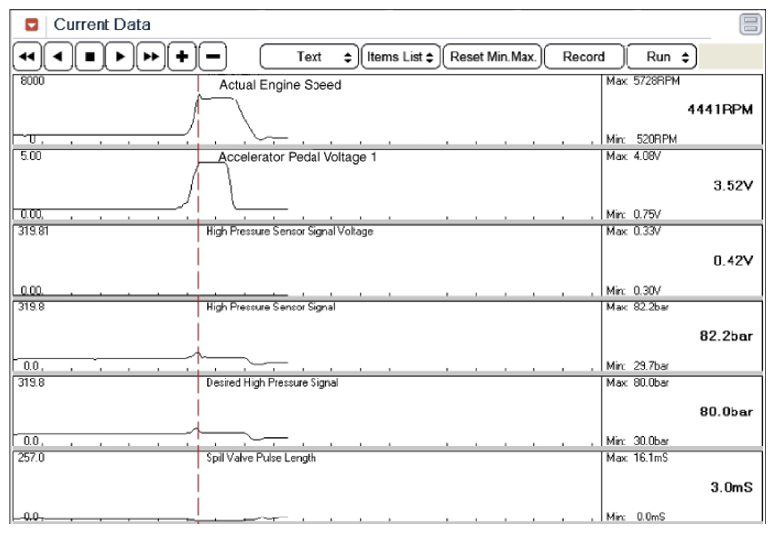

Fig 3: Rail Pressure Sensor Normal Waveform (At Acceleration)
G08817185Courtesy of HYUNDAI MOTOR AMERICA
