Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the under cover (A).

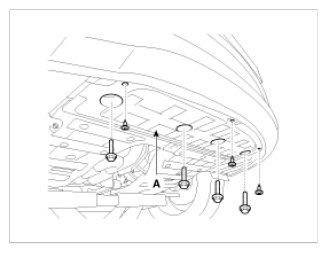

    Fig 1: Identifying Under Cover
    G08814775Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the connector and then remove the ambient temperature sensor (A).

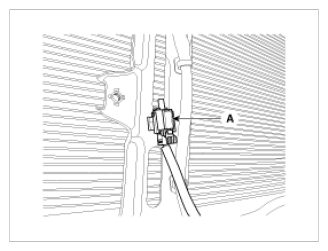

    Fig 2: Identifying Ambient Temperature Sensor
    G08814776Courtesy of HYUNDAI MOTOR AMERICA
  4. Installation is the reverse order of removal.
