Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad.

    (Refer to "CRASH PAD ")

  3. Loosen the screws and then remove the cluster ionizer (A).

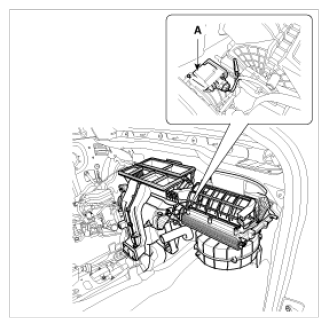

    Fig 1: Removing Cluster Ionizer
    G08814778Courtesy of HYUNDAI MOTOR AMERICA
  4. Installation is the reverse order of removal.
