Components and Components Location: Components

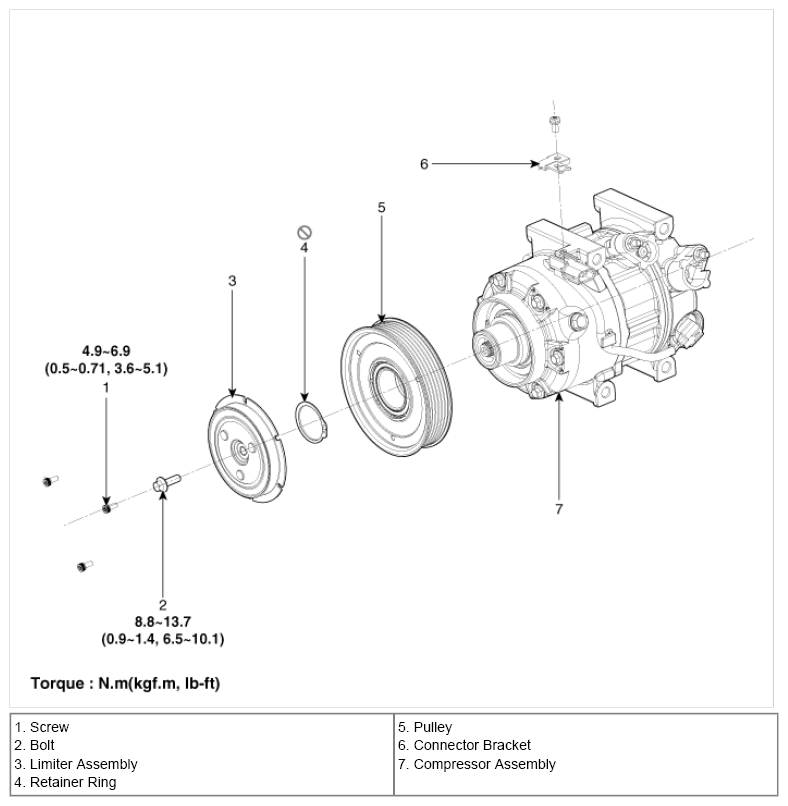

Fig 1: Compressor And Related Replacement Components With Torque Specifications
G08814732Courtesy of HYUNDAI MOTOR AMERICA
