Repair Procedures: Disassembly

Disconnect the negative cable from the battery.
Remove the front right tire (A) from front hub.
Tightening torque:

88.2~107.8N.m (9.0~11.0kgf.m, 65.0~79.5 lb-ft)

Fig 1: Identifying Front Right Tire
Courtesy of HYUNDAI MOTOR AMERICA

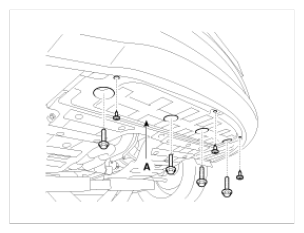

Remove the under cover (A).

Fig 2: Identifying Under Cover And Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

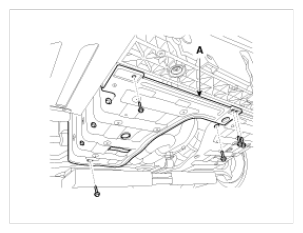

Remove the side cover (A).

Fig 3: Identifying Side Cover And Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

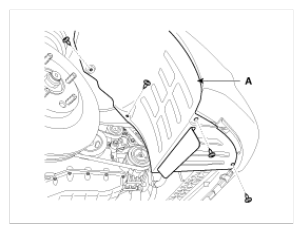

Remove the wheel house (A).

Fig 4: Identifying Wheel House
Courtesy of HYUNDAI MOTOR AMERICA

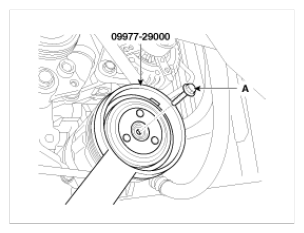

Remove the center bolt (A) while holding the disc & hub assembly with a commercially available disc & hub assembly bolt remover; Special tool number 09977-29000.
Tightening torque:

8.8~13.7N.m (0.9~1.4kgf.m, 6.5~10.1 lbf.ft)

Fig 5: Removing Disc And Hub Assembly Center Bolt Using Suitable Tool
Courtesy of HYUNDAI MOTOR AMERICA

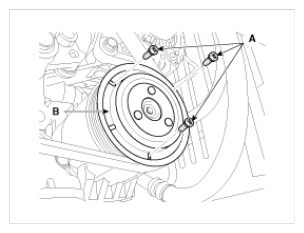

Loosen the disc & hub assembly mounting screws (A) and then remove the disc & hub assembly (B).
Tightening torque:

4.9~6.9N.m (0.5~0.71kgf.m, 3.6~5.1 lbf.ft)

Fig 6: Identifying Mounting Screws, Disc And Hub Assembly
Courtesy of HYUNDAI MOTOR AMERICA

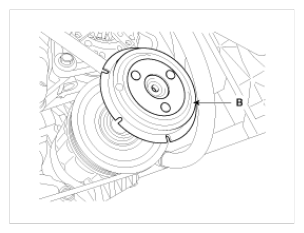

Fig 7: Identifying Disc And Hub Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Remove the drive belt.
(Refer to "DRIVE BELT ")

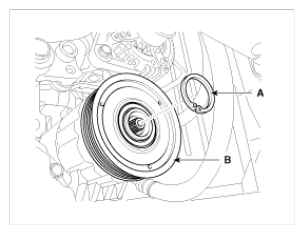

Remove retainer ring (A) with retainer ring pliers and then remove the pulley (B).

Fig 8: Identifying Pulley And Retainer Ring
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful not to damage the pulley (B) and compressor during removal/installation.
- Once retainer ring (A) is removed, replace it with a new one.
Reassemble the compressor clutch in the reverse order of disassembly and note these items:
1. Clean the pulley and compressor sliding surfaces with non-petroleum solvent.
2. Install new retainer rings, and make sure they are fully seated in the groove.
3. Make sure that the pulley turns smoothly after its reassembled.
