Repair Procedures: Inspection: Notes

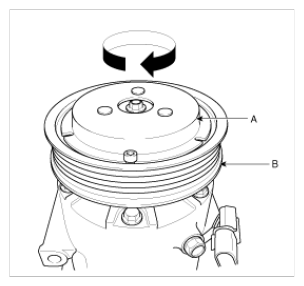

- Check the plated parts of the limiter assembly (A) for color changes, peeling or other damage. If there is damage, replace the limiter assembly.
- Check the pulley (B) bearing play and drag by rotating the pulley by hand. Replace the limiter assembly with a new one if it is noisy or has excessive play/drag.
