Repair Procedures: Replacement

  1. Remove the console extension cover (A).
    Fig 1: Identifying Console Extension Cover
    G08814766Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the crash pad lower cover (A) and then disconnect the connector (B).

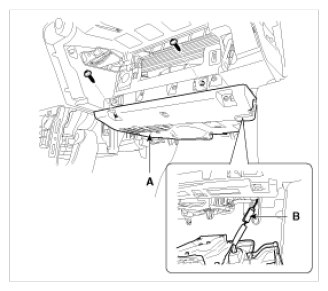

    Fig 2: Identifying Crash Pad Lower Cover And Connector
    G08814767Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the cooling hose.
  4. Disconnect the evaporator temp connector (A).

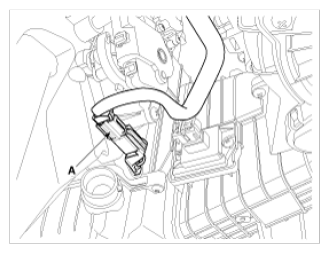

    Fig 3: Identifying Evaporator Temp Connector
    G08814768Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the evaporator temperature sensor (A), by pulling it after rotating 90° in a counterclockwise direction.

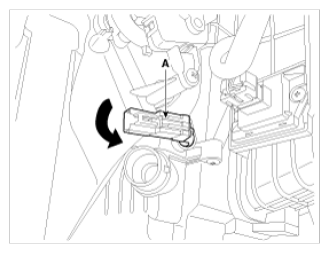

    Fig 4: Removing Evaporator Temperature Sensor
    G08814769Courtesy of HYUNDAI MOTOR AMERICA
  6. Installation is the reverse order of removal.
