Components and Components Location: Components

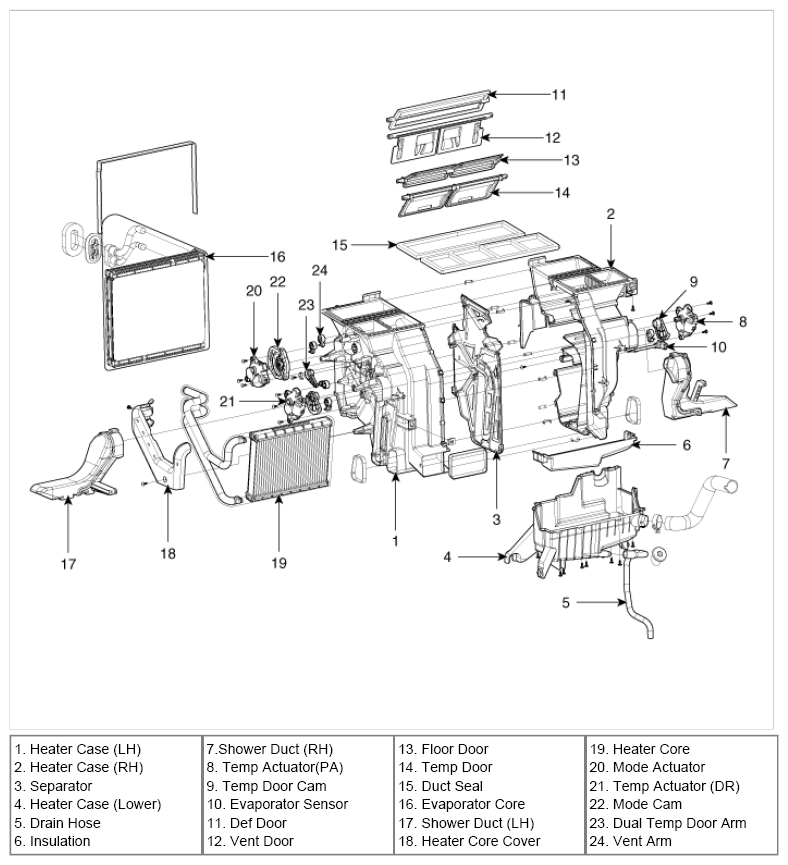

Fig 1: Exploded View Of Heater Unit Components
G08814780Courtesy of HYUNDAI MOTOR AMERICA
