Driver Temperature Control Actuator

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad left side cover (A).

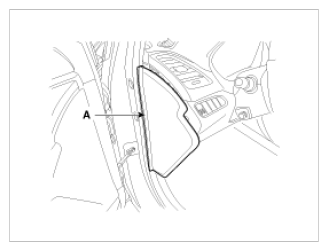

    Fig 1: Identifying Crash Pad Left Side Cover
    G08814798Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the extension cover (A).
    Fig 2: Identifying Extension Cover
    G08814799Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the fuse box cover (A).

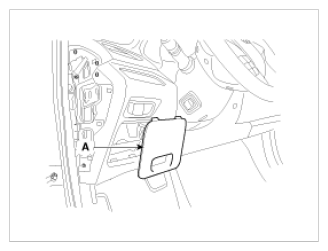

    Fig 3: Identifying Fuse Box Cover
    G08814800Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the crash pad lower cover (A).

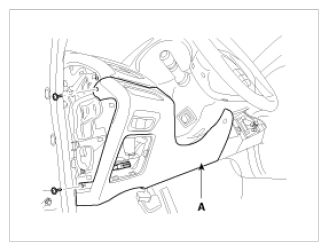

    Fig 4: Identifying Crash Pad Lower Cover
    G08814801Courtesy of HYUNDAI MOTOR AMERICA
  6. Disconnect the diagnosis connector (A) and then remove the crash pad lower cover (B).

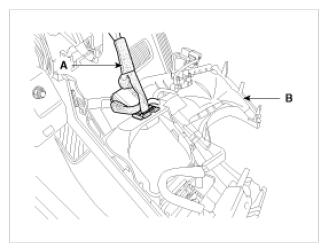

    Fig 5: Identifying Crash Pad Lower Cover And Diagnosis Connector
    G08814802Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the shower duct (A).

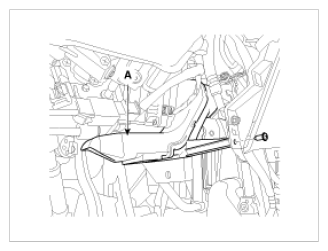

    Fig 6: Identifying Shower Duct
    G08814803Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the BCM.

    (Refer to "BODY CONTROL MODULE (BCM) ")

  9. Disconnect the temperature control actuator connector (A).

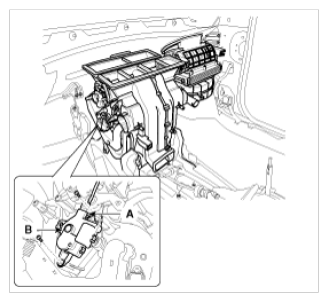

    Fig 7: Identifying Temperature Control Actuator And Connector
    G08814804Courtesy of HYUNDAI MOTOR AMERICA
  10. Loosen the mounting screw and then remove the temperature control actuator (B).
