PCM Connector End View (CLG-B)

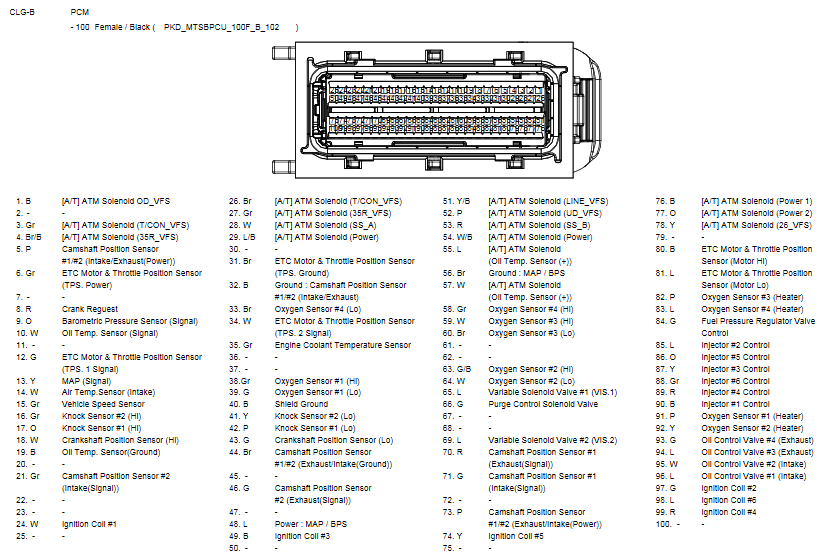

Fig 1: PCM Connector End View (CLG-B)
G10775863Courtesy of HYUNDAI MOTOR AMERICA
