Repair Procedures: Replacement

  1. Remove the front wheel & tire (A).

    Tightening torque:  88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)

    Fig 1: Identifying Front Wheel & Tire
    G08810051Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Be careful not to damage to the hub bolts when removing the front wheel & tire.
  2. Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.

    Tightening torque:  32.4 ~ 34.3N.m (3.8 ~ 3.5kgf.m, 23.9 ~ 25.3lb-ft)

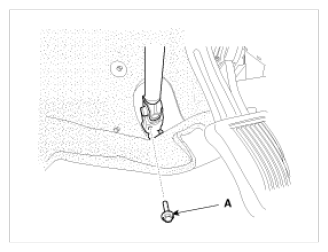

    Fig 2: Identifying Universal Joint Assembly Mounting Bolt
    G08810222Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Keep the neutral-range to prevent the damage of the clock spring inner cable when you handle the steering wheel.
    • Make sure when you reassemble the universal joint and pinion shaft certainly has been inserted.
  3. Remove the under cover (A).

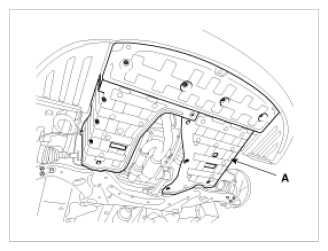

    Fig 3: Identifying Under Cover
    G08810223Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the sprit pin and castle nut and then disconnect the tie-rod end (A) from the front knuckle.

    Tightening torque:  34.3~44.1N.m (3.5~4.5Kgf.m, 25.3~32.5lb-ft)

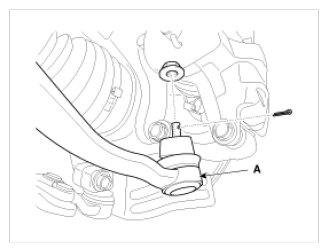

    Fig 4: Identifying Tie-Rod End Sprit Pin And Castle Nut
    G08810224Courtesy of HYUNDAI MOTOR AMERICA
  5. Loosen the bolt & nut and then remove the lower arm (A).

    Tightening torque:  98.1~117.7N.m (10.0~12.0Kgf.m, 72.3~86.8lb-ft)

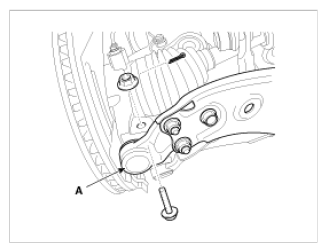

    Fig 5: Identifying Lower Arm Mounting Bolt & Nut
    G08810225Courtesy of HYUNDAI MOTOR AMERICA
  6. Disconnect the stabilizer link (B) with the front strut assembly (A) after loosening the nut.

    Tightening torque:  98.1~117.7N.m (10.0~12.0Kgf.m, 72.3~86.8lb-ft)

    Fig 6: Identifying Stabilizer Link, Front Strut Assembly And Mounting Nut
    G08810226Courtesy of HYUNDAI MOTOR AMERICA
  7. Loosen the bolt and then remove the front roll stopper (A).

    Tightening torque:  107.9 ~ 127.5N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)

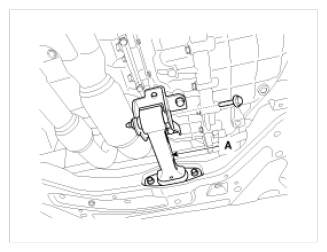

    Fig 7: Identifying Front Roll Stopper Mounting Bolt
    G08810227Courtesy of HYUNDAI MOTOR AMERICA
  8. Disconnect the muffler rubber hanger (A).

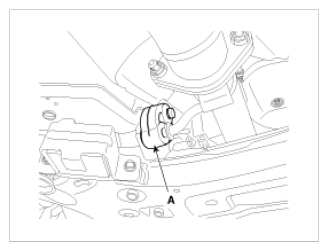

    Fig 8: Identifying Muffler Rubber Hanger
    G08810228Courtesy of HYUNDAI MOTOR AMERICA
  9. Loosen the bolts & nuts and then remove the sub frame (A).

    Tightening torque

    Sub frame mounting bolts & nuts:

    156.9 ~ 176.5N.m (16.0 ~ 18.0kgf.m, 115.7 ~ 130.2lb-ft)

    Sub frame bracket bolts & nuts:

    44.1 ~ 58.8N.m (4.5 ~ 6.0kgf.m, 32.5 ~ 43.4lb-ft)

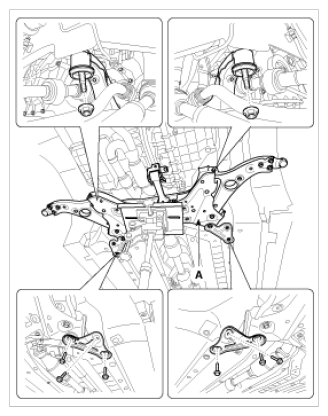

    Fig 9: Identifying Sub Frame, Mounting Bolts & Nuts
    G08810229Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the stabilizer bar (A).

    Tightening torque:  49.0~63.7N.m (5.0~6.5kgf.m, 36.2~47.0lb-ft)

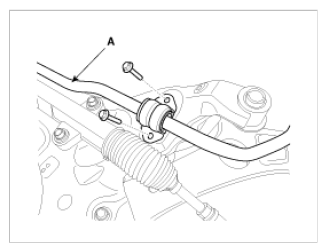

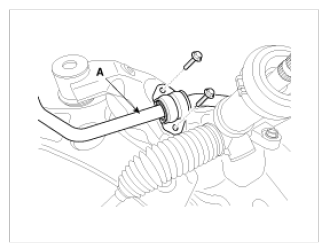

    Fig 10: Identifying Stabilizer Bar, Bracket And Mounting Bolts (1 Of 2)
    G08810230Courtesy of HYUNDAI MOTOR AMERICA
    Fig 11: Identifying Stabilizer Bar, Bracket And Mounting Bolts (2 Of 2)
    G08810231Courtesy of HYUNDAI MOTOR AMERICA
  11. Remove steering gear box (A) from the front sub frame by loosening the mounting bolts.

    Tightening torque:  88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)

    Fig 12: Removing Steering Gear Box
    G08810232Courtesy of HYUNDAI MOTOR AMERICA
  12. Installation is the reverse of removal.
  13. Check the alignment.

    (Refer to "ALIGNMENT ")
