Removal and Installation

Remove the radiator upper hose and lower hose.
(Refer to "RADIATOR HOSE ")
Remove the cooling fan assembly.
(Refer to "COOLING FAN ")
Disconnect the over flow hose.
(Refer to "RESERVOIR TANK ")
Disconnect the hose (B) after removing the automatic transaxle fluid cooler hose clamp (A).

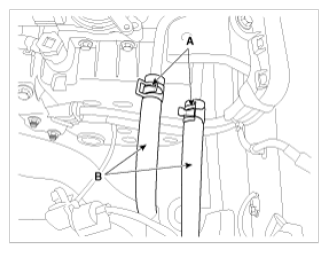

Fig 1: Identifying Automatic Transaxle Fluid Cooler Hose And Clamp
Courtesy of HYUNDAI MOTOR AMERICA
Remove the radiator mounting brackets (A).
Tightening torque: 3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)

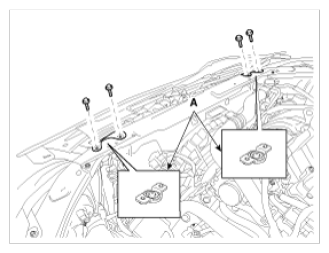

Fig 2: Identifying Radiator Mounting Bracket With Nuts
Courtesy of HYUNDAI MOTOR AMERICA
Separate the condenser from the radiator and then pull radiator (A) up and remove it from engine room.

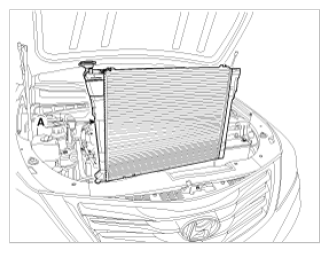

Fig 3: Identifying Radiator
Courtesy of HYUNDAI MOTOR AMERICA
Installation is in the reverse order of removal.
Fill the radiator with coolant and check for leaks.
NOTE:
- Bleed air from the cooling system.
  - Start engine and let it run until it warms up. (Until the radiator fan operates 3 or 4 times.)
  - Turn off engine and let it cool down. Check the coolant level and add coolant if needed. This will allow trapped air to be removed from the cooling system.
  - Put the radiator cap on tightly, then run engine again and check for leaks.
