Projected Dimensions
Projected Dimensions

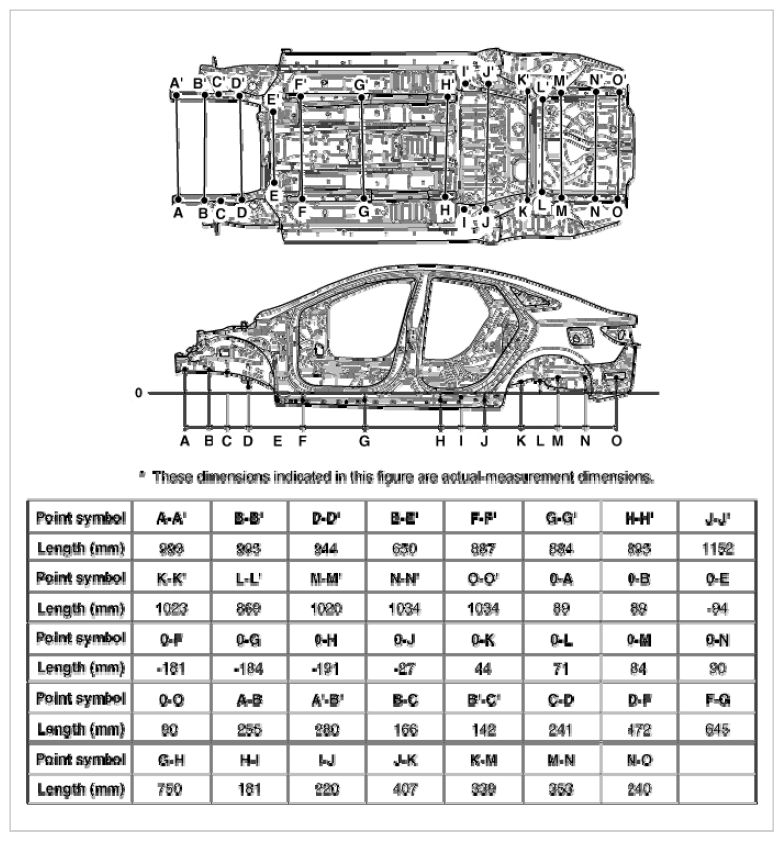

Fig 1: Identifying Under Body Projected Dimensions
Courtesy of HYUNDAI MOTOR AMERICA

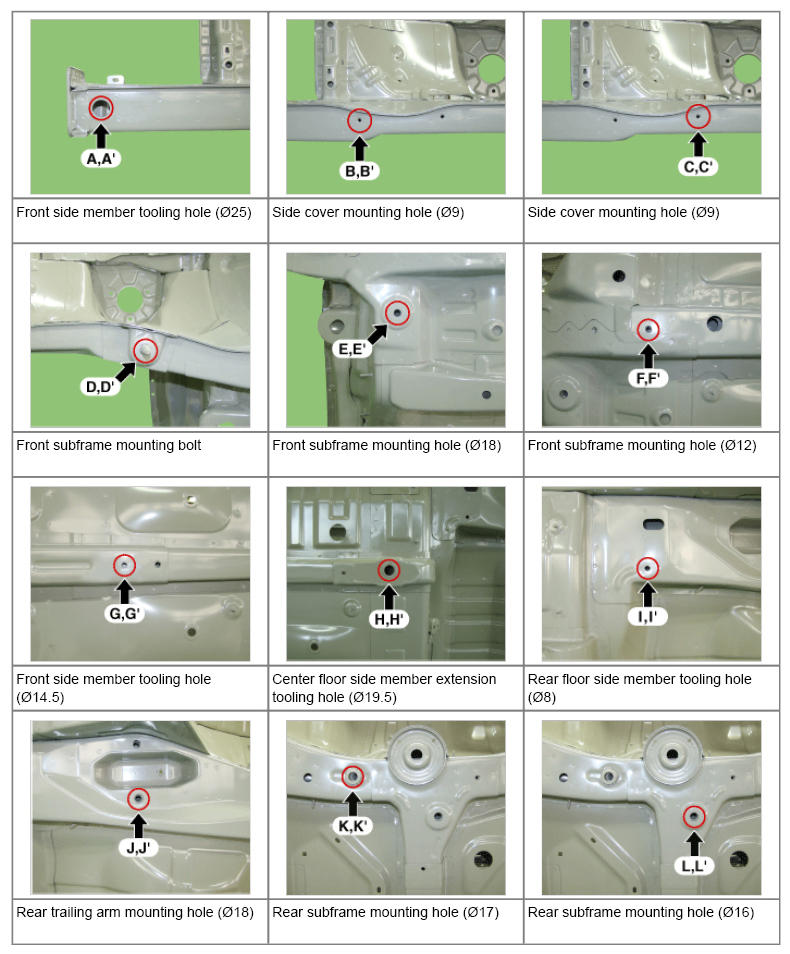

Fig 2: Locating Mounting Holes On Under Body (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

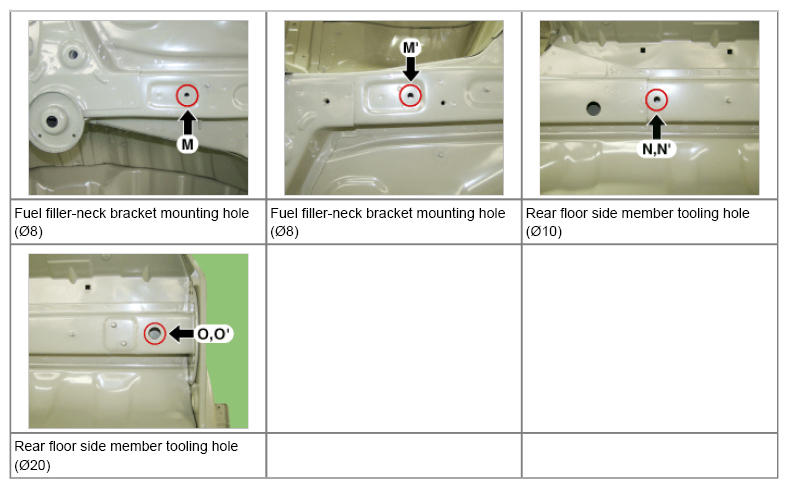

Fig 3: Locating Mounting Holes On Under Body (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
