Components and Components Location: Components

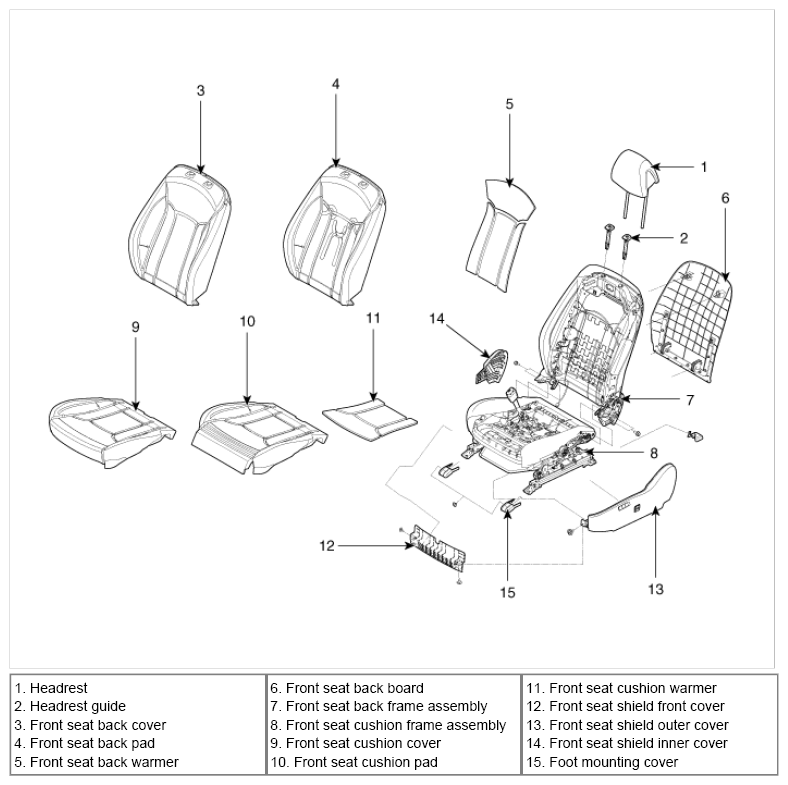

Fig 1: Identifying Front Seat Components
G08810821Courtesy of HYUNDAI MOTOR AMERICA
