Home › Hyundai › 2014 › Elantra Coupe Automatic Trans › Repair and Diagnosis › Body & Frame › Windows › Interior › Console › Components and Components Location › Components › [A/T]

Components and Components Location: Components: [A/T]

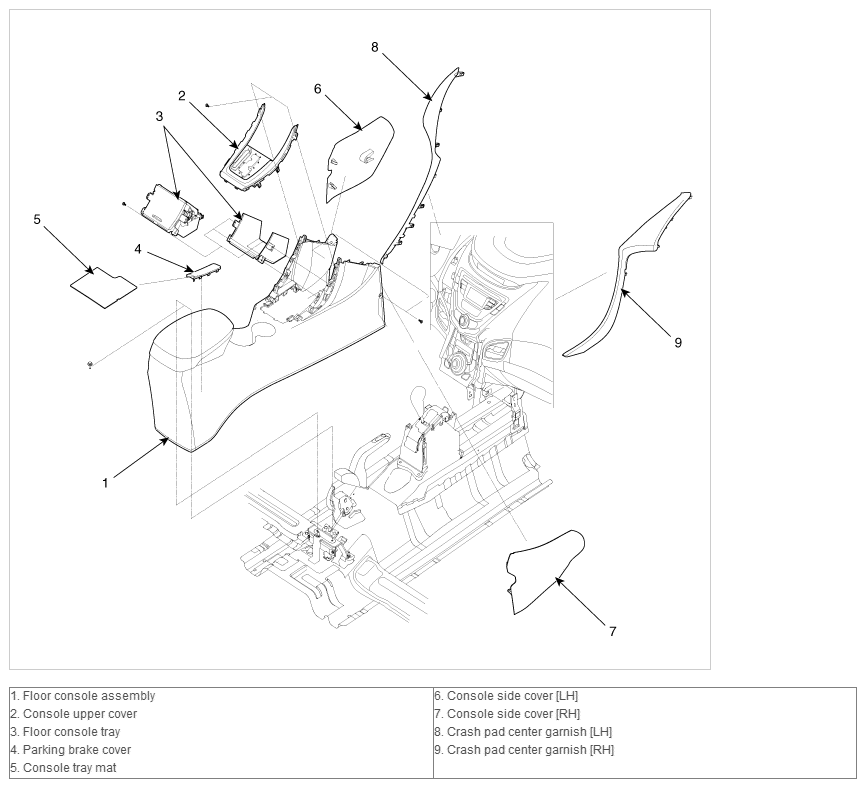

Fig 1: Console Component Locations (A/T)
G10254224Courtesy of HYUNDAI MOTOR AMERICA
