Home › Hyundai › 2014 › Elantra Coupe Automatic Trans › Repair and Diagnosis › Brakes › Traction Control › Electronic Stability Control (ESC) System › ESC Control Module › Components and Components Location › Components

Components and Components Location: Components

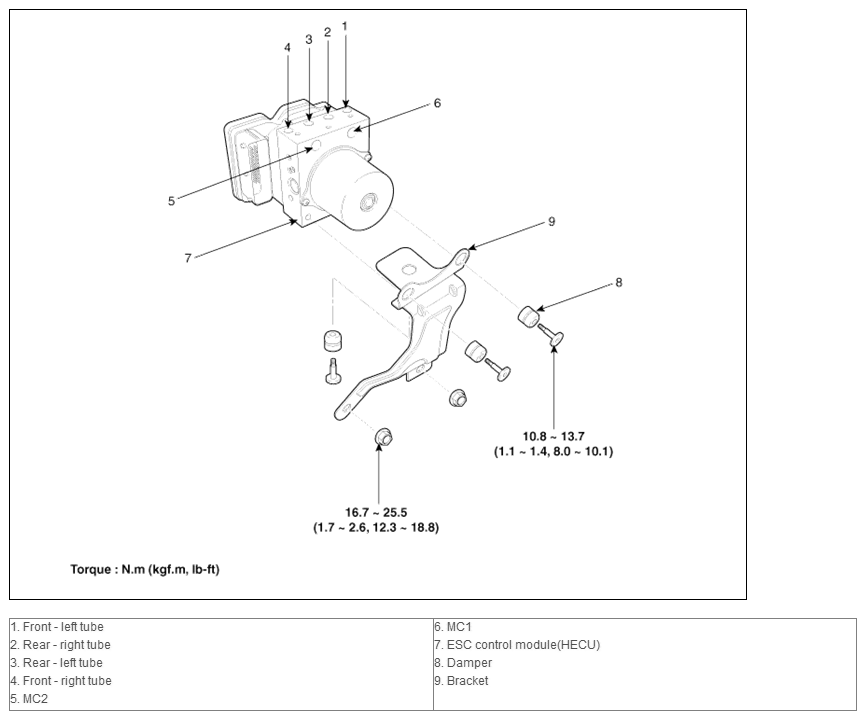

Fig 1: ESC Control Module Components With Torque Specifications
G10254106Courtesy of HYUNDAI MOTOR AMERICA
