Components and Components Location: Components

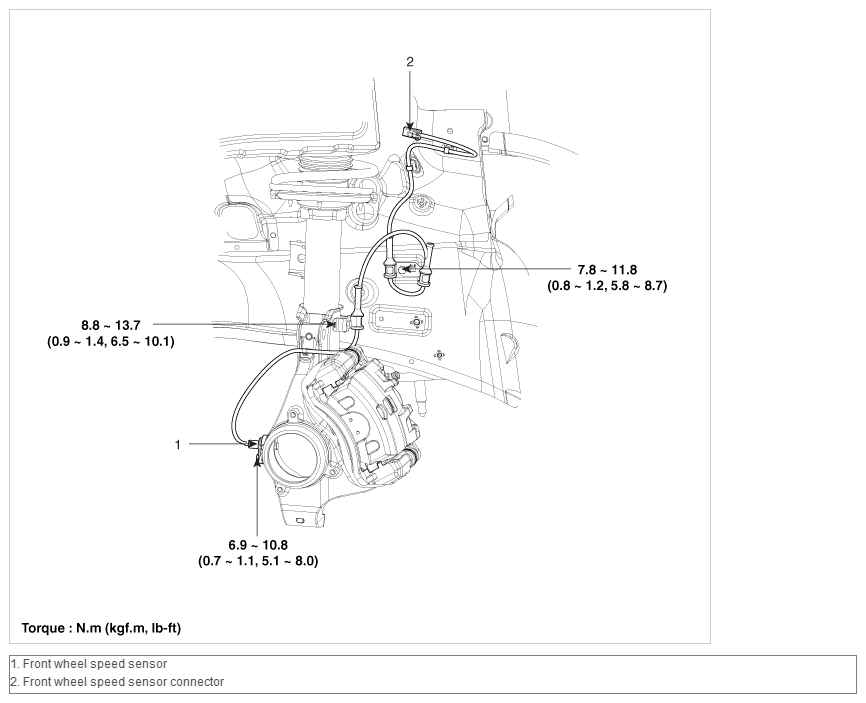

Fig 1: Front Wheel Speed Sensor Components With Torque Specifications
G10254110Courtesy of HYUNDAI MOTOR AMERICA
