Components and Components Location: Component

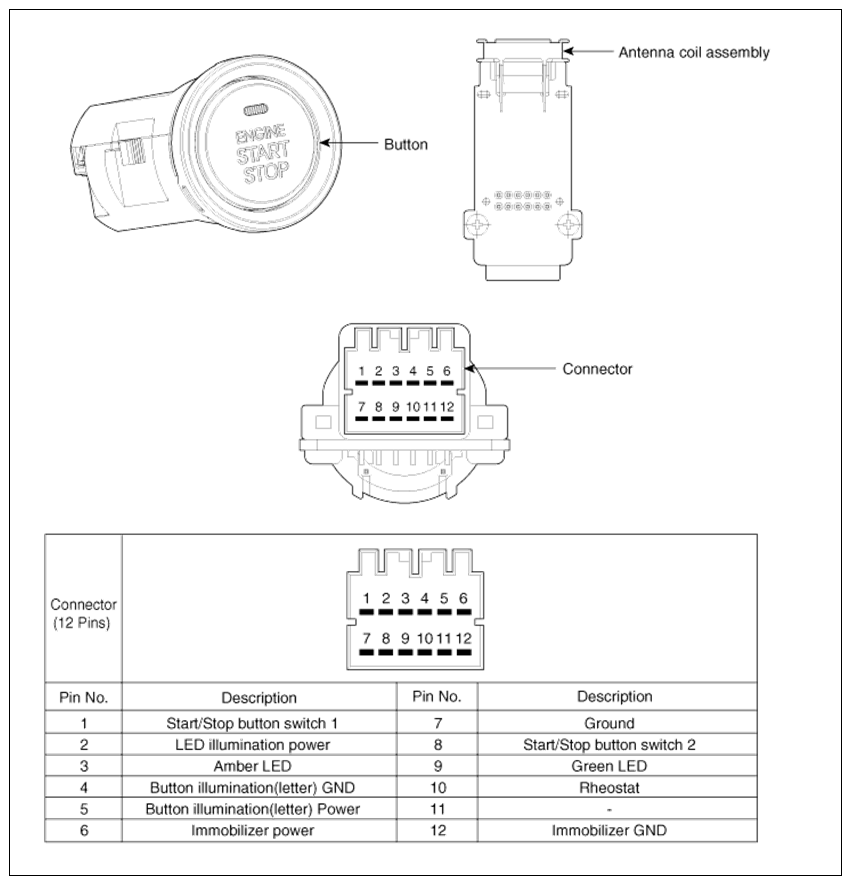

Fig 1: Engine Start/Stop Button Components And Connector Identification
G10254998Courtesy of HYUNDAI MOTOR AMERICA
