Circuit Diagram: (M/T)

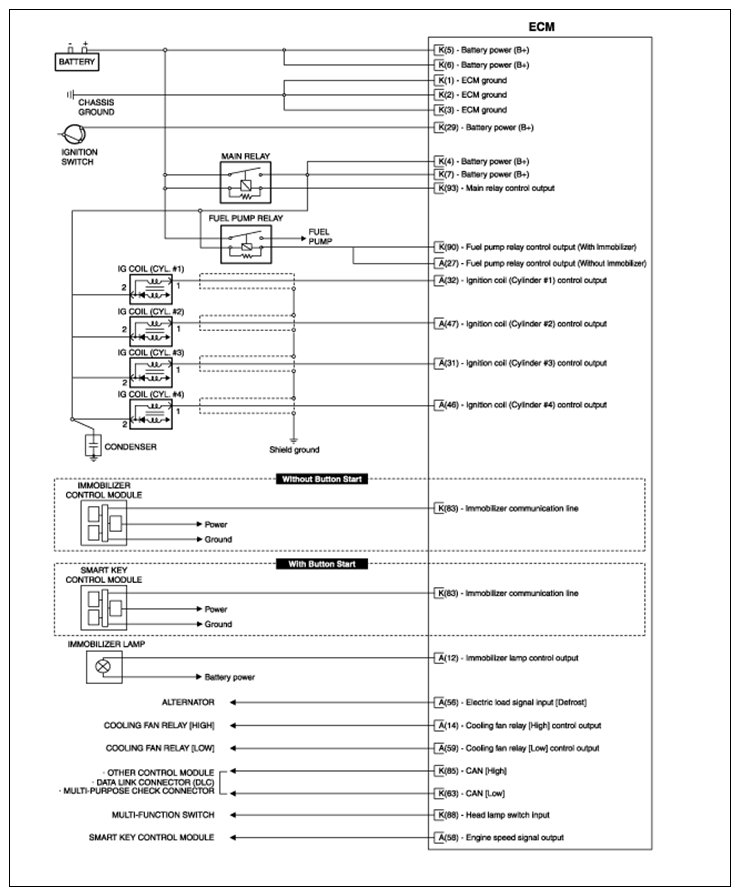

Fig 1: ECM Circuit Diagram (M/T; 1 Of 4)
G10255680Courtesy of HYUNDAI MOTOR AMERICA

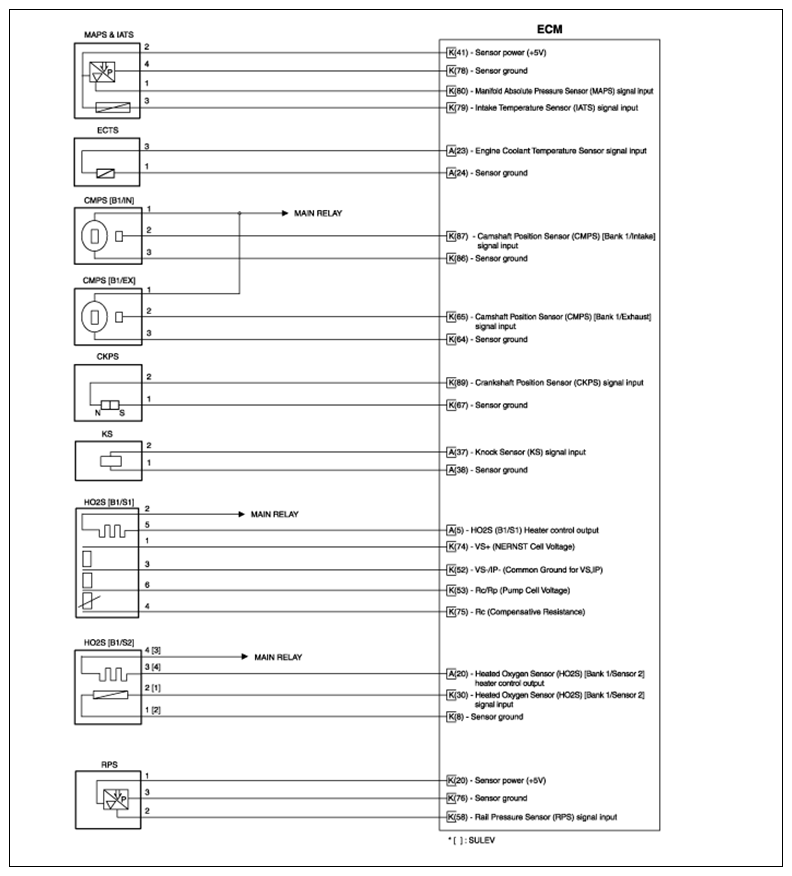

Fig 2: ECM Circuit Diagram (M/T; 2 Of 4)
G10255681Courtesy of HYUNDAI MOTOR AMERICA

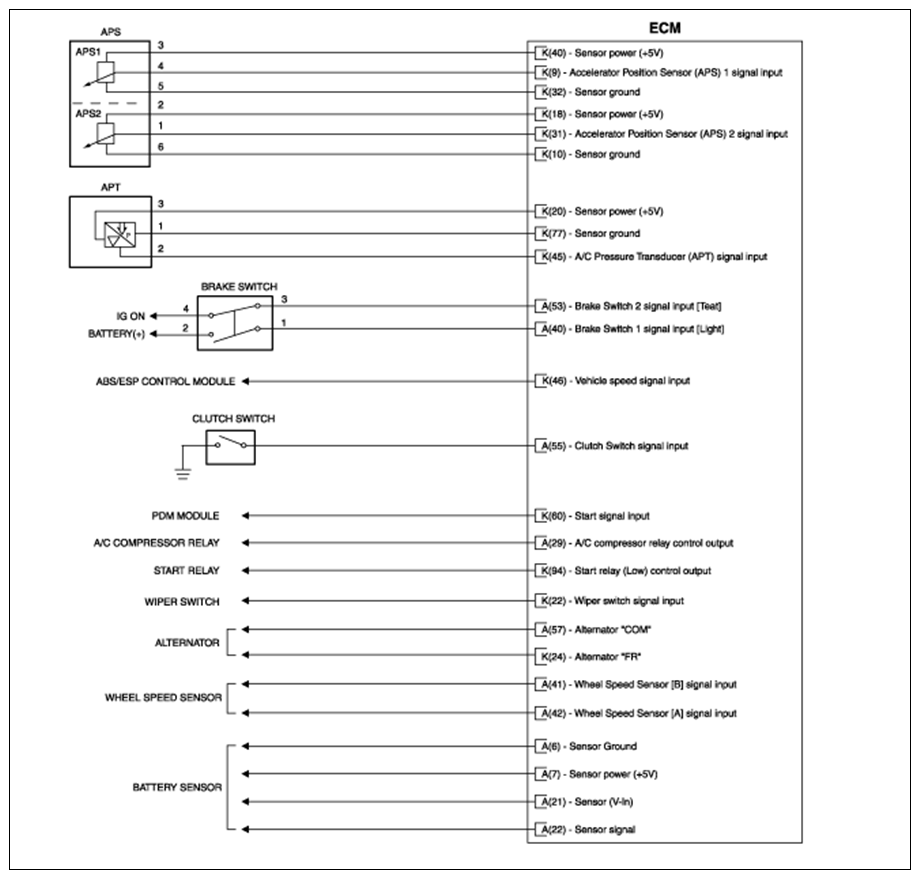

Fig 3: ECM Circuit Diagram (M/T; 3 Of 4)
G10255682Courtesy of HYUNDAI MOTOR AMERICA

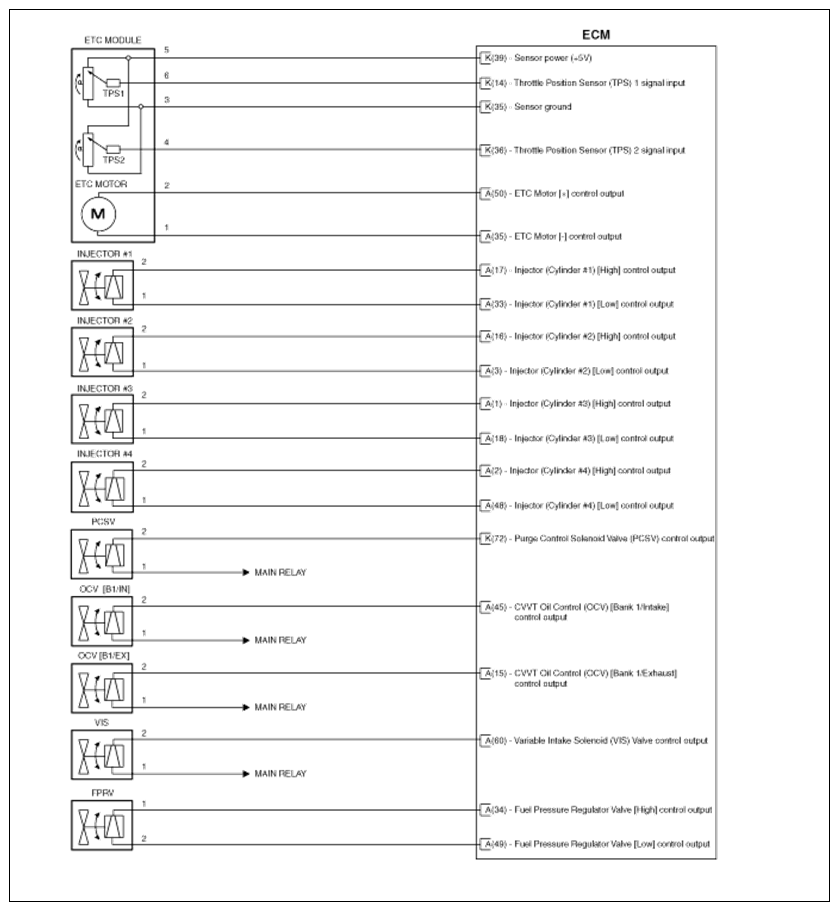

Fig 4: ECM Circuit Diagram (M/T; 4 Of 4)
G10255683Courtesy of HYUNDAI MOTOR AMERICA
