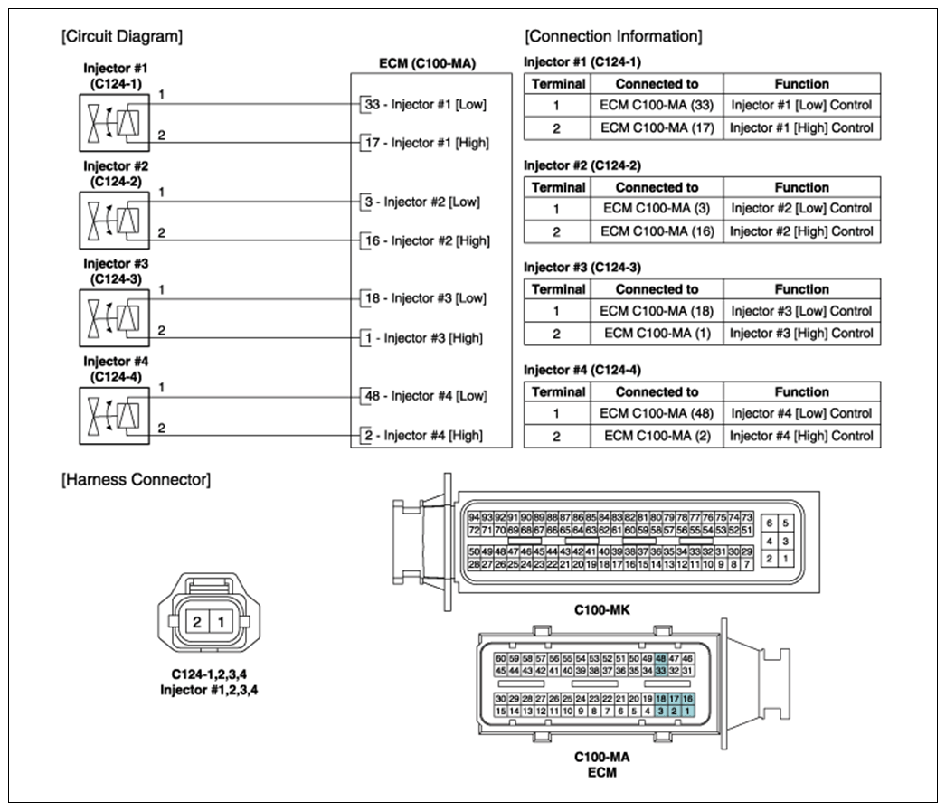

Home › Hyundai › 2014 › Elantra Coupe Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › Injector › Schematic Diagrams › Circuit Diagram › (M/T)
