Signal Waveform

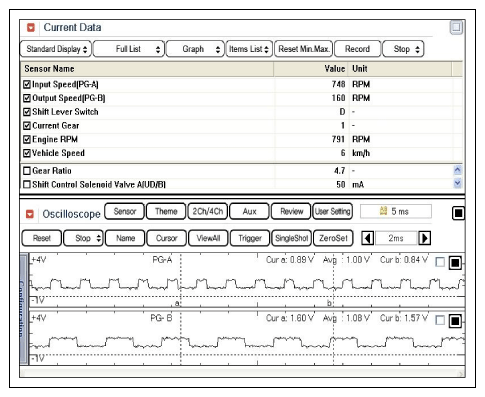

Fig 1: Display - Input/Output Speed Sensor Current Data Signal Waveform Screen (Low Speed)
G10255957Courtesy of HYUNDAI MOTOR AMERICA

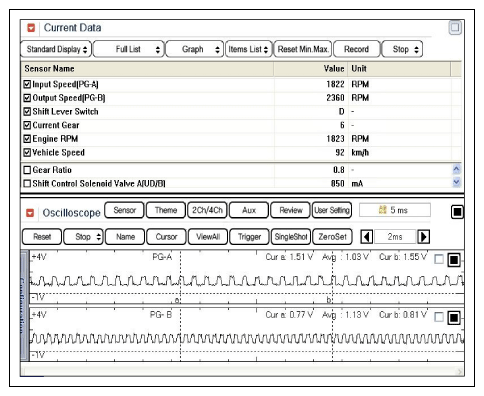

Fig 2: Display - Input/Output Speed Sensor Current Data Signal Waveform Screen (High Speed)
G10255958Courtesy of HYUNDAI MOTOR AMERICA
