Automatic Transaxle Control System
›
Transaxle Control Module (TCM)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

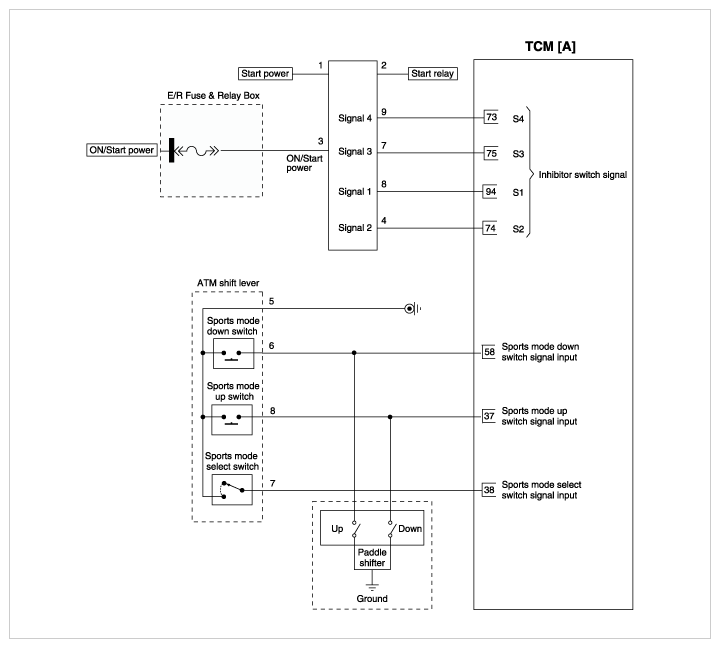

Fig 1: Transaxle Control Module Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

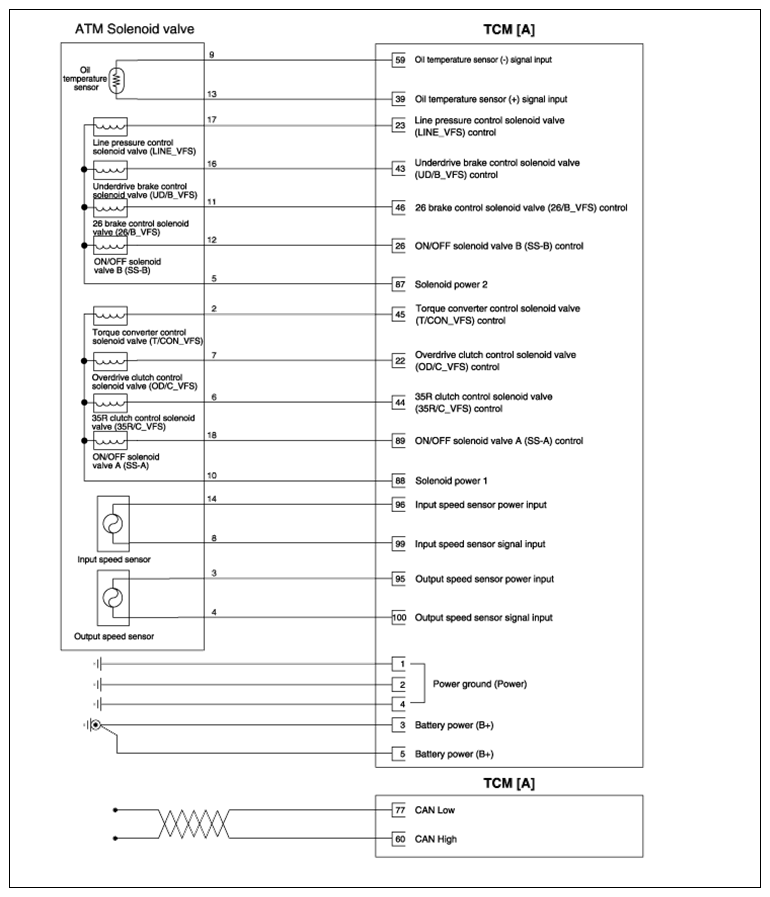

Fig 2: Transaxle Control Module Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
