Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

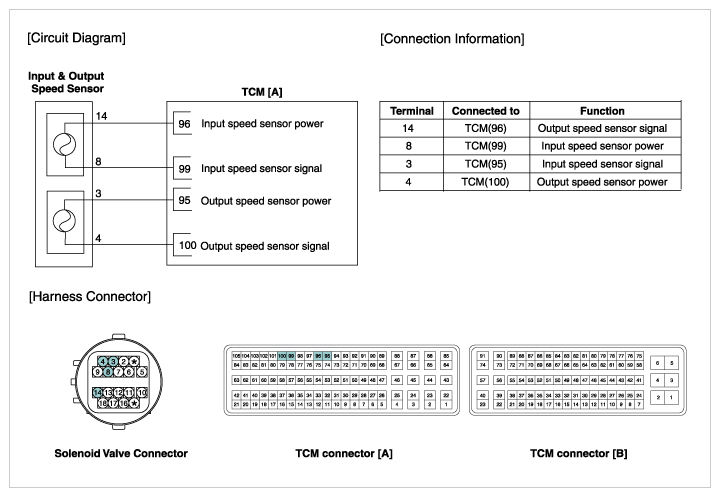

Fig 1: Input And Output Speed Sensor Circuit Diagram And Connector Terminal Ientification
G10255951Courtesy of HYUNDAI MOTOR AMERICA
