Driver Power Window Switch: Notes

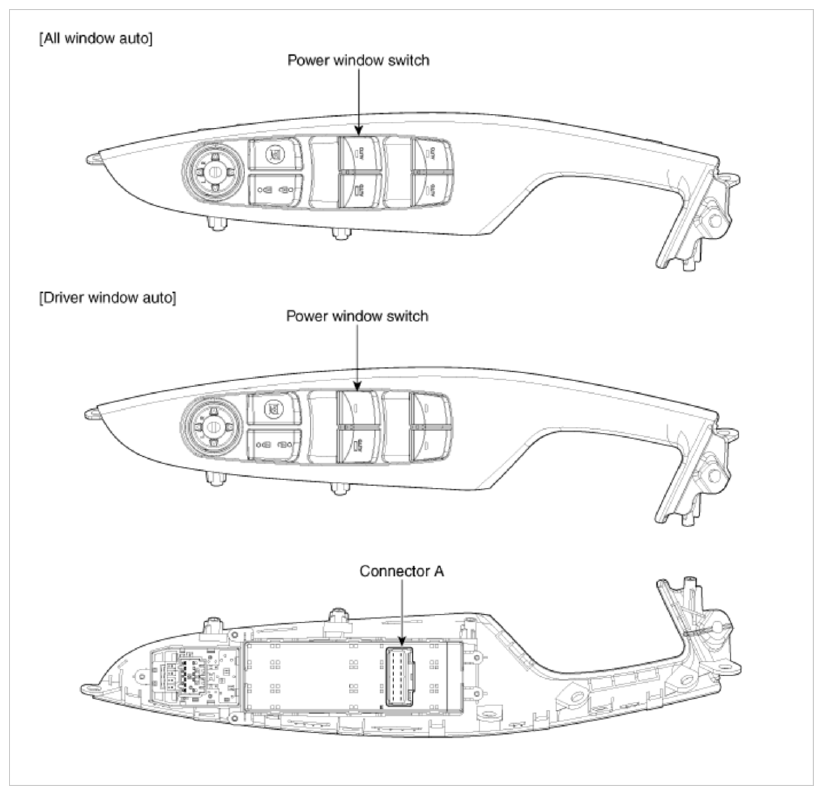

Fig 1: Power Window Switch Schematic Diagrams
G09887572Courtesy of HYUNDAI MOTOR AMERICA

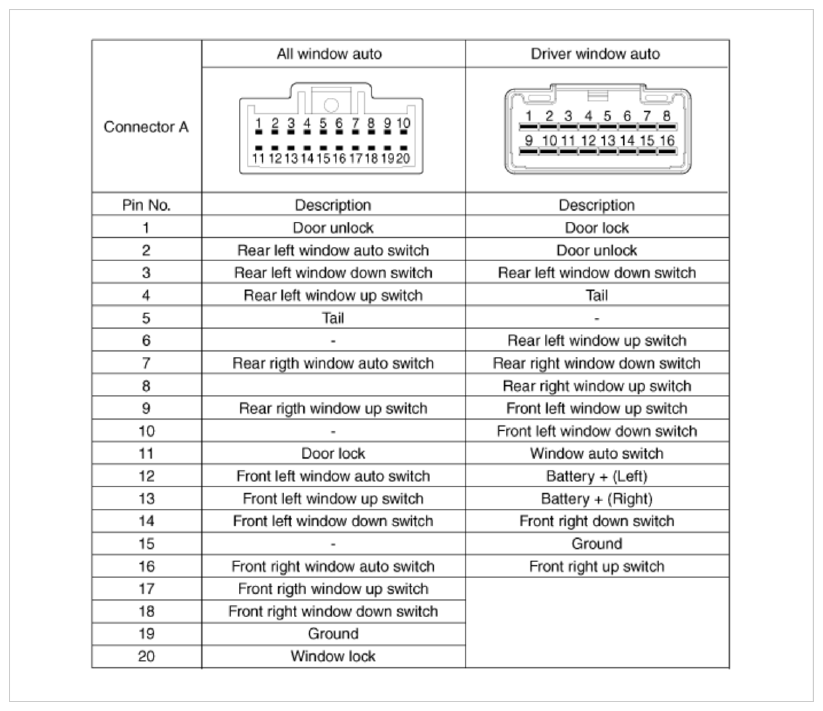

Fig 2: Identifying Power Window Switch Connector Pins
G09887573Courtesy of HYUNDAI MOTOR AMERICA
