Components and Components Location: Components

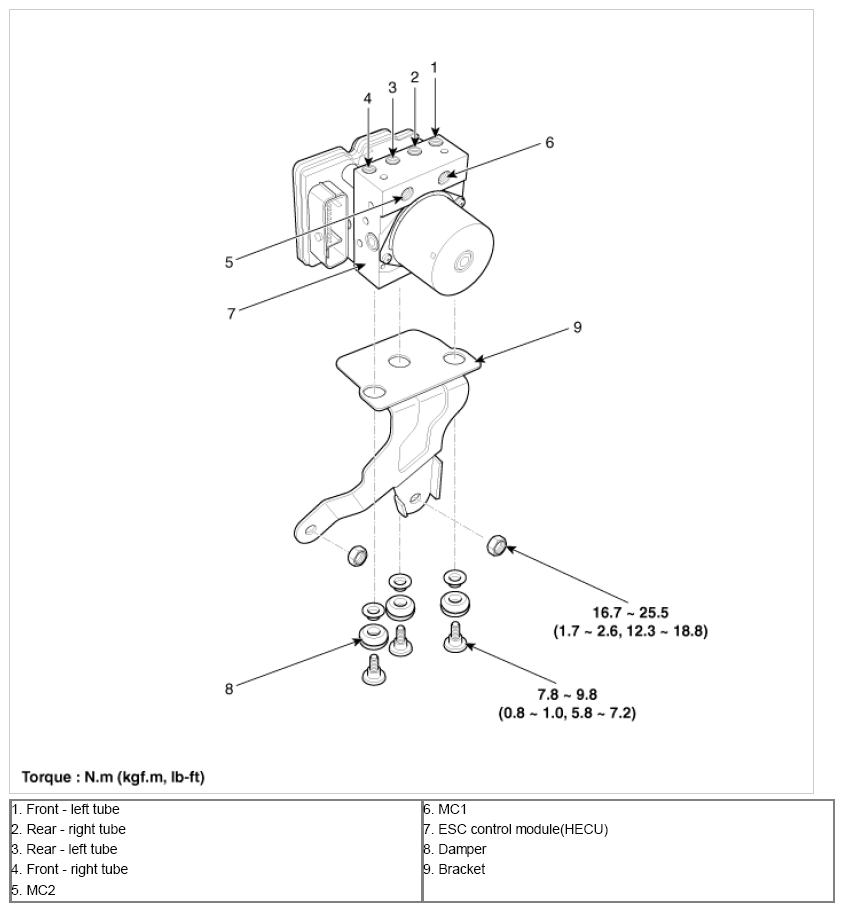

Fig 1: Identifying ESC Control Module Components
G09886783Courtesy of HYUNDAI MOTOR AMERICA
