Home › Hyundai › 2014 › Elantra GT Automatic Trans › Repair and Diagnosis › Drivelines & Axles › Wheel Hubs › Front Axle Assembly › Front Hub/Knuckle › Components and Components Location › Components

Components and Components Location: Components

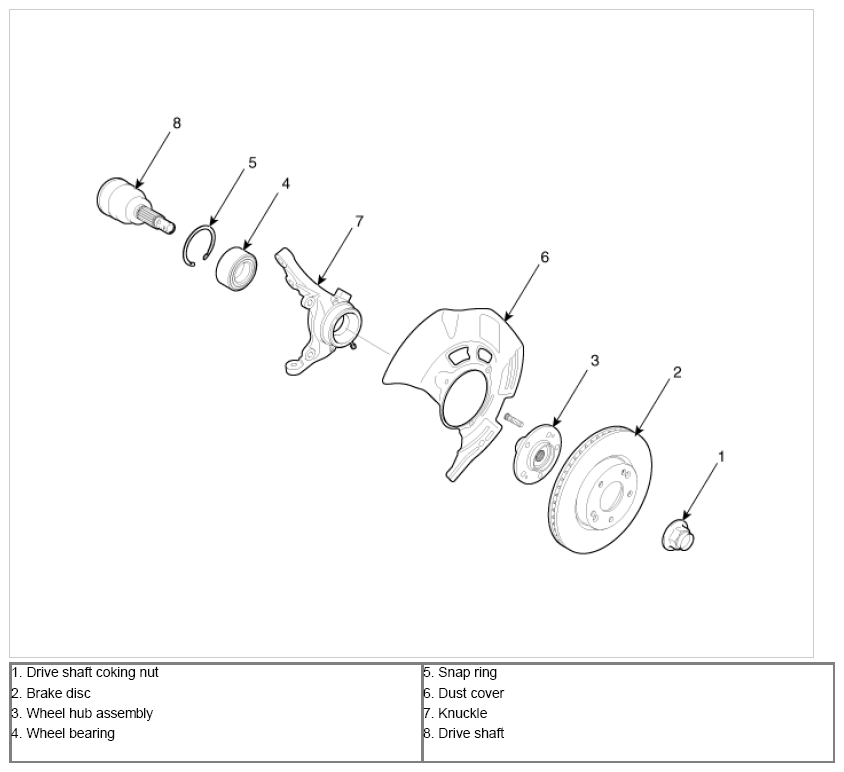

Fig 1: Front Hub Knuckle Components Location
G09886299Courtesy of HYUNDAI MOTOR AMERICA
