Components and Components Location: Components

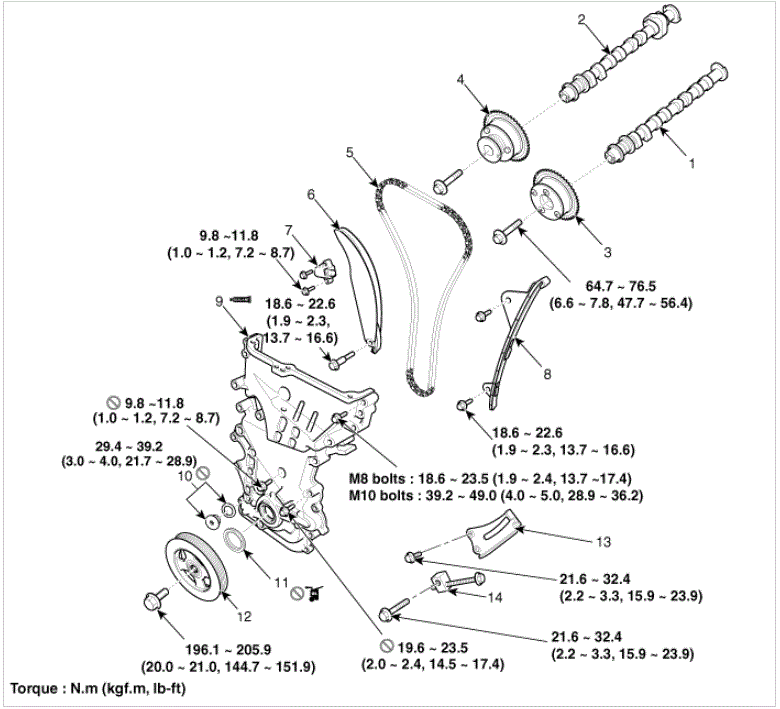

Fig 1: Timing System Replacement Components With Torque Specifications

Courtesy of HYUNDAI MOTOR AMERICA

1. Intake camshaft	8. Timing chain guide
2. Exhaust camshaft	9. Timing chain cover
3. Intake CVVT assembly	10. Service plug bolt & gasket
4. Exhaust CVVT assembly	11. Front oil seal
5. Timing chain	12. Crankshaft damper pulley
6. Timing chain tensioner arm	13. Alternator brace
7. Timing chain tensioner	14. Adjust nut
