Crankshaft Position Sensor (CKPS): Troubleshooting: Waveform

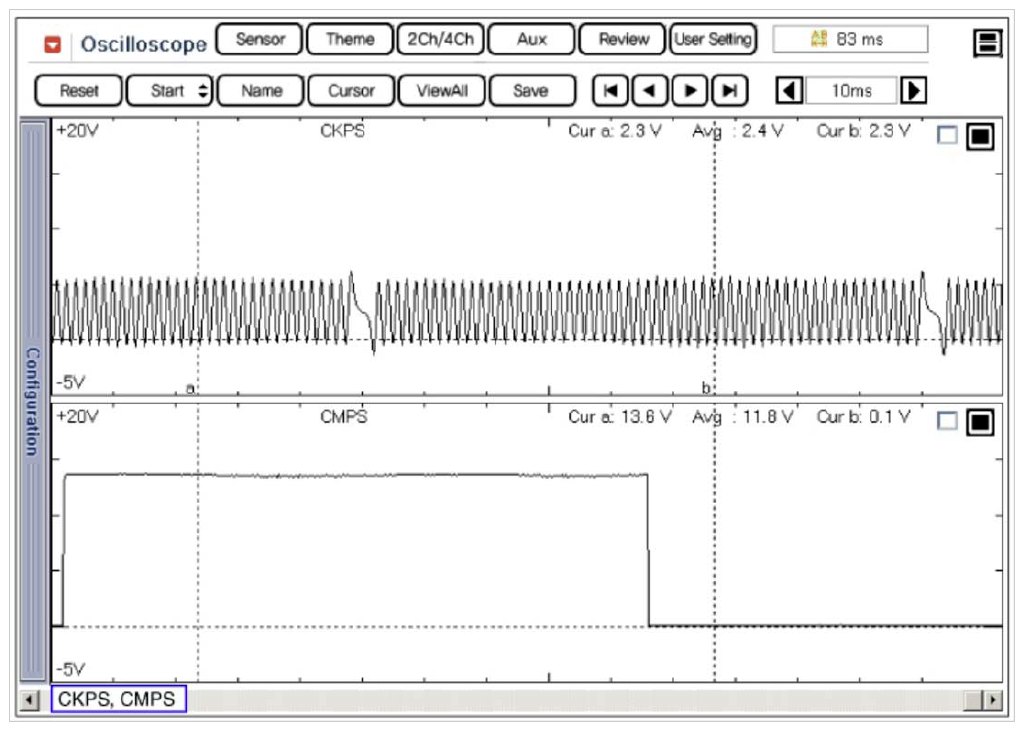

Fig 1: Display - CMPS/CKPS Troubleshooting Waveform Screen (Up)

Courtesy of HYUNDAI MOTOR AMERICA

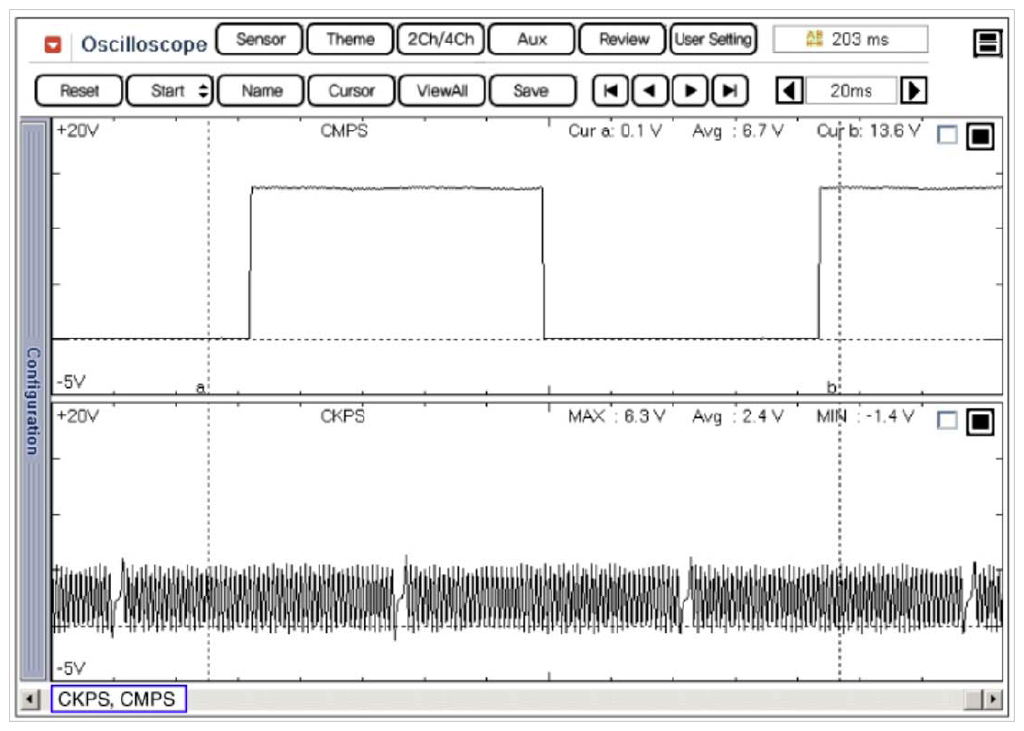

Fig 2: Display - CMPS/CKPS Troubleshooting Waveform Screen (Down)

Courtesy of HYUNDAI MOTOR AMERICA
