Circuit Diagram: (M/T)

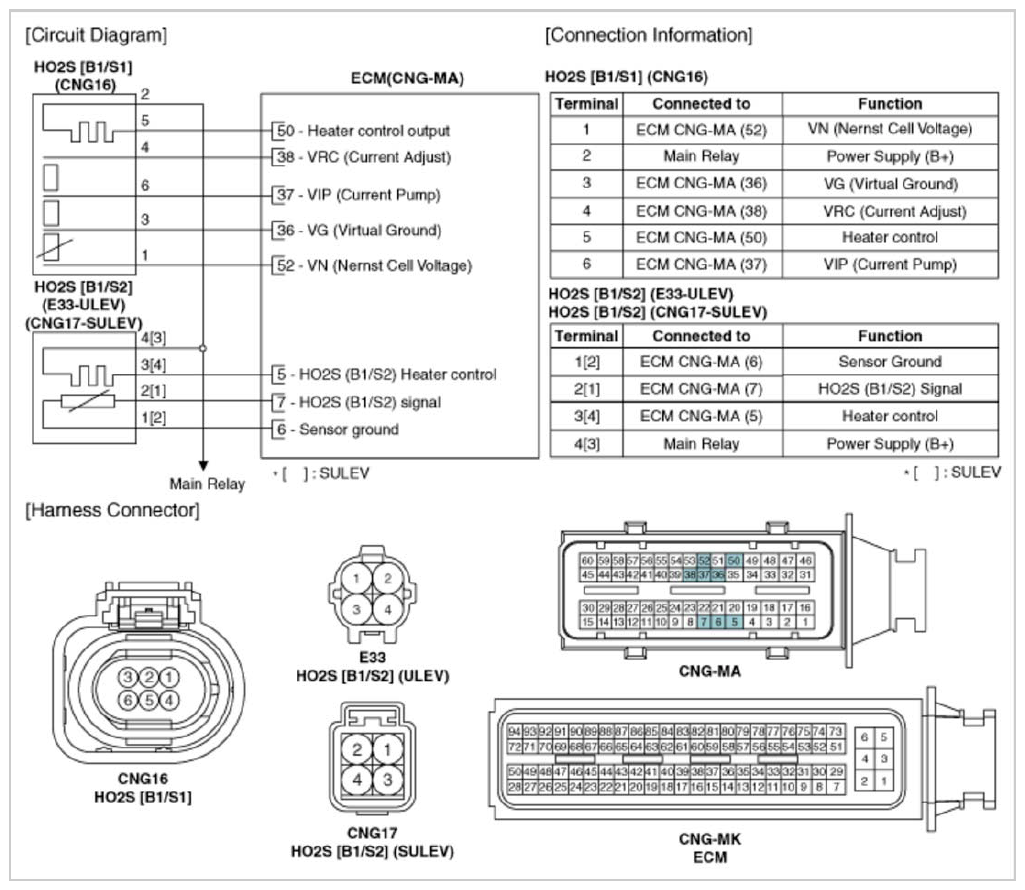

Fig 1: Heated Oxygen Sensor - B1/S1 Schematic Diagrams (M/T)
G09885916Courtesy of HYUNDAI MOTOR AMERICA
