Home › Hyundai › 2014 › Elantra GT Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Variable Charge Motion Actuator (VCMA) › Components and Components Location › Components

Components and Components Location: Components

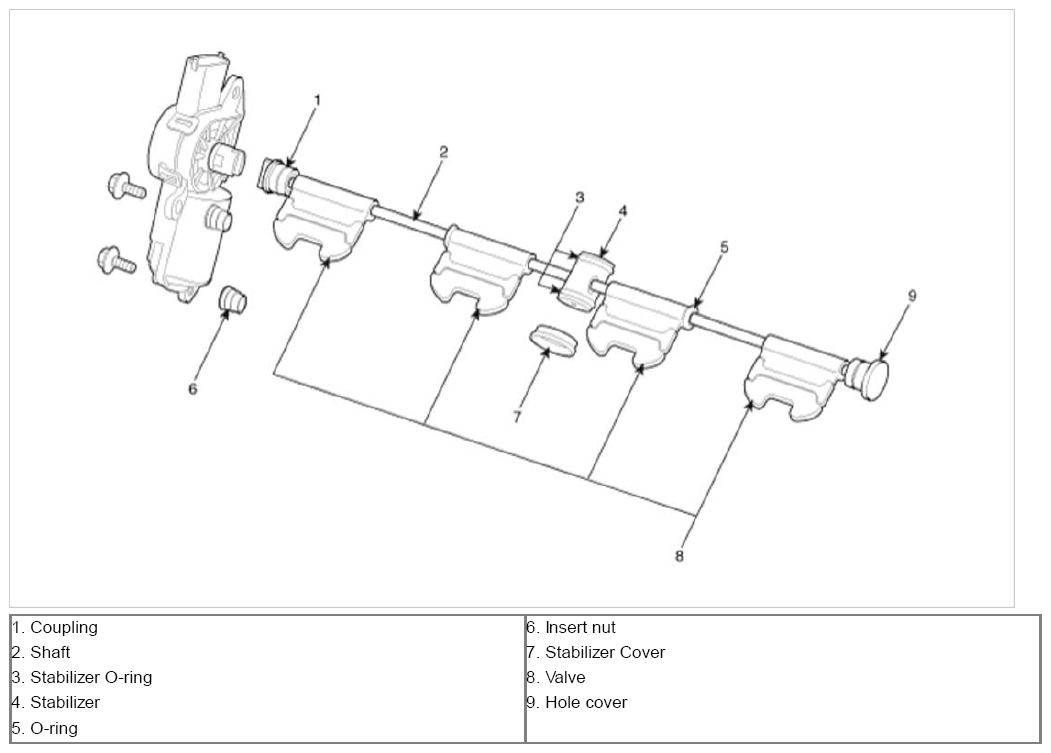

Fig 1: Variable Charge Motion Actuator Components Location
G09885962Courtesy of HYUNDAI MOTOR AMERICA
