Circuit diagram: (A/T)

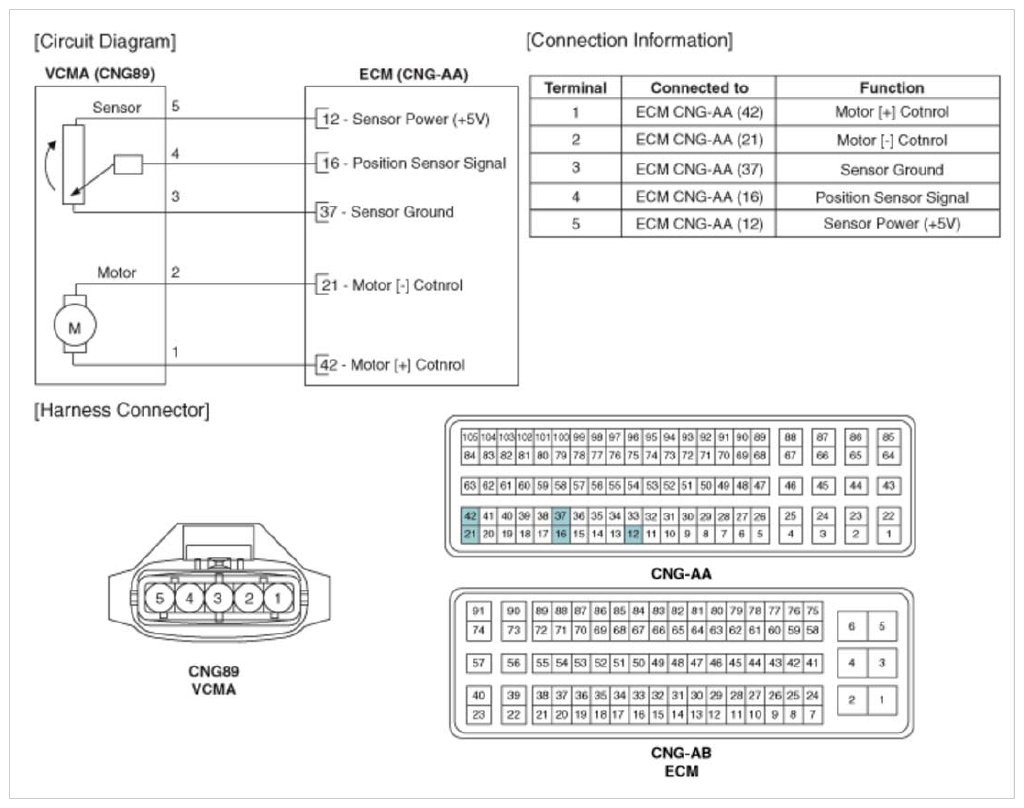

Fig 1: VCMA Schematic Diagrams (A/T)
G09885964Courtesy of HYUNDAI MOTOR AMERICA
