Repair procedures: Removal

  1. Turn the ignition switch OFF, and then remove battery (-) cable.
  2. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  3. Disconnect the fuel feed quick-connector (A).
    Fig 1: Identifying Fuel Feed Quick-Connector
    G09886010Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the vapor hose (A) which is connected from the PCSV.
    Fig 2: Identifying Vapor Hose
    G09886011Courtesy of HYUNDAI MOTOR AMERICA
  5. Disconnect the fuel pump connector (A) and fuel feed quick-connector (C) from the fuel pump.
  6. Disconnect the fuel tank pressure sensor connector (B).
    Fig 3: Identifying Fuel Pump Connector And Fuel Tank Pressure Sensor Connector
    G09886012Courtesy of HYUNDAI MOTOR AMERICA
  7. Lift the vehicle.
  8. Remove the fuel tank.

    (Refer to Fuel Delivery System - "FUEL TANK ")

  9. Disconnect the vapor tube quick-connector (A).
    Fig 4: Identifying Vapor Tube Quick-Connector
    G09886013Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the vapor tube line fixing clip (A).
    Fig 5: Identifying Vapor Tube Line Fixing Clip
    G09886014Courtesy of HYUNDAI MOTOR AMERICA
  11. Remove the fuel feed line fixing clip (A).

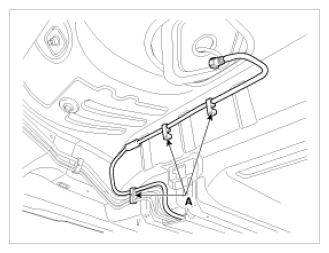

    Fig 6: Identifying Fuel Feed Line Fixing Clip
    G09886015Courtesy of HYUNDAI MOTOR AMERICA
  12. Disconnect the fuel & brake line protect (A) from the fixing clip.
    Fig 7: Disconnecting Fuel And Brake Line Protect From Fixing Clip
    G09886016Courtesy of HYUNDAI MOTOR AMERICA
  13. Remove the fuel line fixing clip (A).

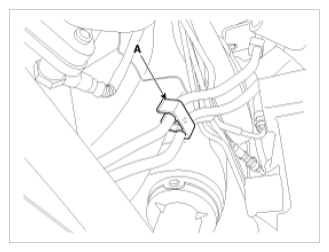

    Fig 8: Identifying Fuel Line Fixing Clip
    G09886017Courtesy of HYUNDAI MOTOR AMERICA
  14. Remove the fuel line (A).
    Fig 9: Identifying Fuel Line
    G09886018Courtesy of HYUNDAI MOTOR AMERICA
